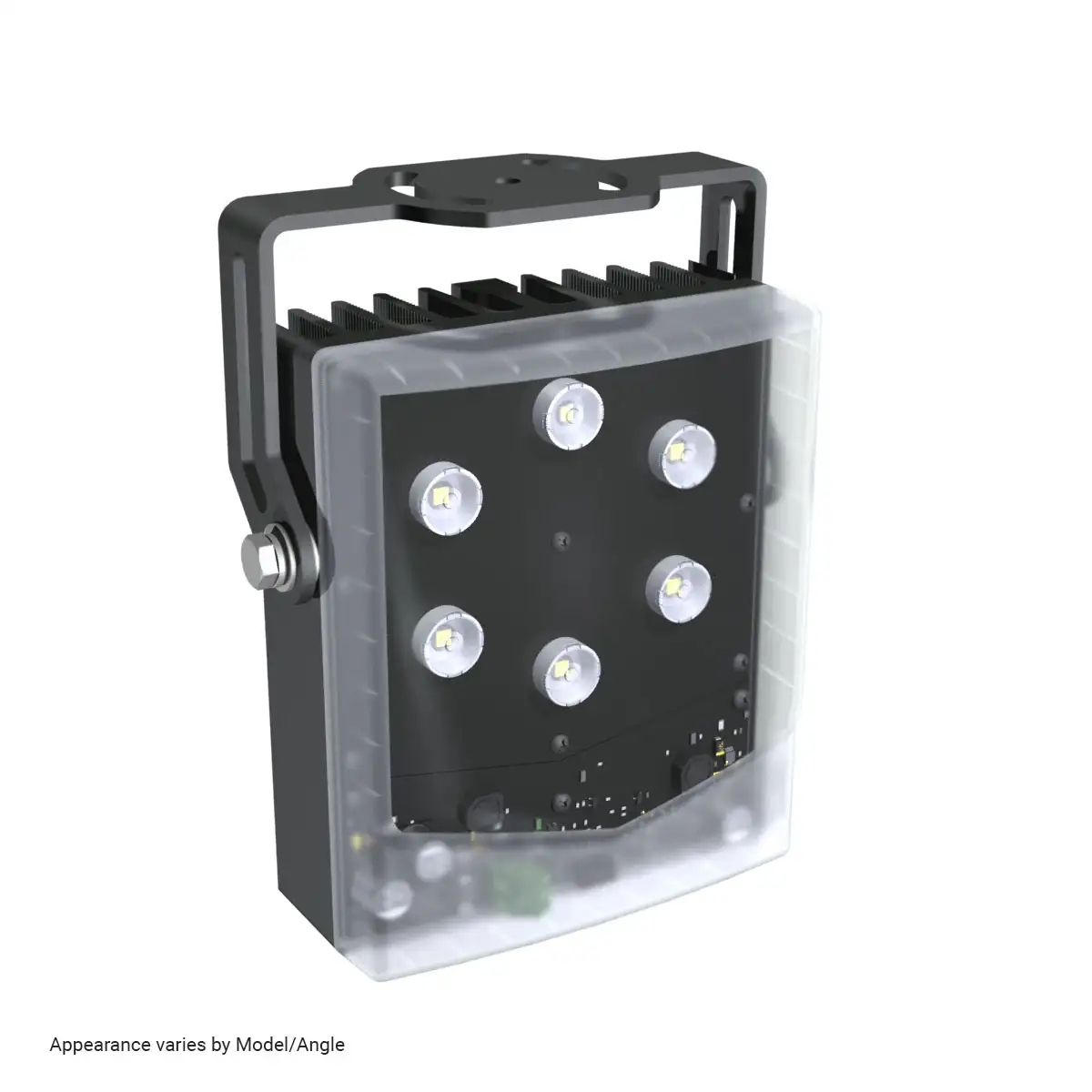

PULSAR AT-100R

Camera-Synced Pulsed IR or White LED Floodlight

  • LED Lighting-AXTON- 25w - Drawing
  • AXTON-white-floodlight-25W

Pulsar 100R, Pulsed IR or White Light

$0.00

Pulsar AT-100R pulsed lighting seamlessly integrates with the camera shutter via I/O ports (Input/Output ports). Pulsed lights deliver up to 10x more light output, which is required to track fast moving processes such as ANPR/LPR applications, and machine vision.

  • Wavelength Options:
    850nm IR, 940nm IR (covert), 730nm IR (deep red) or Visible White Light
  • Three Angle Options: 50˚x20˚, 20˚x10˚ or 10˚
  • I/O Ports Sync with Sensors, Camera, I/O Port Devices
  • Built-In Pulse Generator & Controller
  • Internal/External Triggering
  • Peak Power: 100 Watts
  • Repetition Rate: Single Shot, to 50Hz
  • Triggering Input Range: 3.3 to 24V
  • Output Optical Pulse Duration: (0.1 to 2)ms
  • Input Voltage: 24-36 VDC
Get a Quote
Categories: , , Tags: , , , , , , , , , , , , ,

Description

WordPress Data Table
WordPress Data Table



Note: Highly reflective license plate coatings will increase the lights range of illumination up to 3x.

Specifications

PULSAR AT-100R
Wavelength Options 850nm IR, 940nm IR
730nm Red or White Light (5000K)
Input Power 24-36 VDC
Features Built-In Pulse Generator & Controller
Input/Output Ports
Peak Power 100 Watts
Optical Pulse Duration 0.1 – 2 ms
Repetition Rate Single Shot - to 50 Hz
Triggering Internal/External
Triggering Input Range 3.3-24 V
Operating Temperature -58°F...+140°F / -50°C...+60°C
Dimensions w/bracket 5.25” x 3” x 7.25”/ 133 x 76 x 184mm
Weight 3 lbs /1.3kg
Environmental IP67 Rated - Outdoor or Indoor
Mounting Pan/Tilt U-bracket
WordPress Data Table

Datasheet



Pulsar_20R_IR-Light-Datasheet

Timing Dia.



Pulsar Timing Diagram

Setup

Setup_Guide_Pulsar_Pulsed lighting

Part Numbers

ANGLE WAVELENGTH DESCRIPTION PART NUMBER
50˚ x 20˚ 850nm 850nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
50x20˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R185020
940nm 940nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
50x20˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R195020
730nm 730nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
50x20˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R175020
White White, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
50x20˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R115020
20˚ X 10˚ 850nm 850nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
20˚x10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R182010
940nm 940nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
20˚x10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R192010
730nm 730nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
20˚x10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R172010
White White, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
20˚x10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R112010
10˚ 850nm 850nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R1810
940nm 940nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R1910
730nm 730nm, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R1710
White White, 100W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-100R.100R1110
WordPress Data Table
