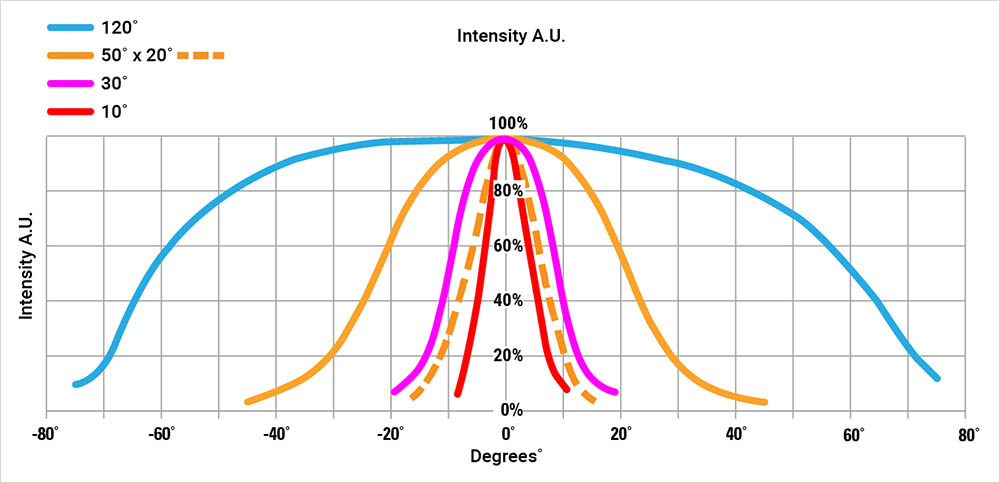

SWIR LED Illuminator AT-11K (9 watt) – Angle Options/ Intensity A.U.
120˚ AT-11K – Working Distance: 4ft. | 50˚x 20˚ AT-11K – Working Distance: 8ft. | 30˚ AT-11K – Working Distance: 10ft. | 10˚ AT-11K – Working Distance: 18ft.
SWIR AT-11K | 1,450nm IR Illuminator
The AT-11K 1,450nm SWIR light illuminator is designed for use with machine vision cameras. Short Wave IR in the wavelength of 1,450nm is ideal for detecting moisture content and defects during product sorting and processing. The SWIR AT-11K includes a tilting U bracket that can be paired with an available pole, wall or corner mount adapter.
- Wavelength – 1,450nm Short Wave Infrared (SWIR)
(Additional wavelengths available, contact us for details.)
- Energy Efficient – Advanced LED Technology
- Angle options: 120˚, (50˚x20˚ elliptical), 30˚, 10˚
- Optional: Analog Dimming (external 0-10V required)
- I/O Ports Sync with Sensors, Camera, I/O Port Devices
- Power Consumption – 9 Watts
- Input Voltage – 24 VDC
- Rugged Construction – Vandal Resistant
- Outdoor IP67 Rated
- Pan/Tilt U Bracket Included Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.
Learn More: SWIR – Short Wave Infrared Light
Contact Us for purchasing information or:
Specifications
SWIR AT-11K | |
| Wavelength | 1,450nm Infrared |
| Input Power | 24 VDC |
| Power Consumption | 9 Watts |
| Features | Input/Output Ports (Analog Dimming optional, ext. 0-10V required) |
| Operating Temperature | -58° to 140°F / -50° to 60°C |
| Dimensions | 4.25”x2”x4.25” / 108x51x108mm |
| Weight | 1.25 lbs/ .56kg |
| Environmental | Outdoor IP67 |
| Mounting | Pan/Tilt U-bracket |
Part Numbers
| ANGLE | DESCRIPTION | PART NUMBER |
| 120˚ | 9 Watts, SWIR Series, I/O Ports, 24 VDC, 1,450nm, 120˚ (Analog Dimming optional, ext. 0-10V required) | AT-11K.11K24120 |
| 50˚ x 20˚ | 9 Watts, SWIR Series, I/O Ports, 24 VDC, 1,450nm, 50˚x20˚ (Analog Dimming optional, ext. 0-10V required) | AT-11K.11K245020 |
| 30˚ | 9 Watts, SWIR Series, I/O Ports, 24 VDC, 1,450nm, 30˚ (Analog Dimming optional, ext. 0-10V required) | AT-11K.11K2430 |
| 10˚ | 9 Watts, SWIR Series, I/O Ports, 24 VDC, 1,450nm, 10˚ (Analog Dimming optional, ext. 0-10V required) | AT-11K.11K2410 |
