Description
Zoom 15Z IR Illuminator – Range
(all ranges in one unit)
Zoom 15Z IR Illuminator, Multiple Angles
$884.00 MSRP
The Zoom 45Z IR illuminator offers the ultimate flexibility, featuring long range, and wide angle IR coverage in one solution. The three built-in angles are controlled via the I/O ports in real-time, or pre-set during installation, to adapt to a specific location.
- Wavelength – 850nm Infrared
- Outdoor IP67 Rated
- Energy Efficient – Advanced LED Technology
- Illumination Range: up to 430 ft. (20˚x 10˚)
- Light Beam Angles:
90° (60˚x 30˚ elliptical*) 20° x 10° - Power Consumption – 15 Watts
- Input Voltage – 24-36V DC or 24V AC

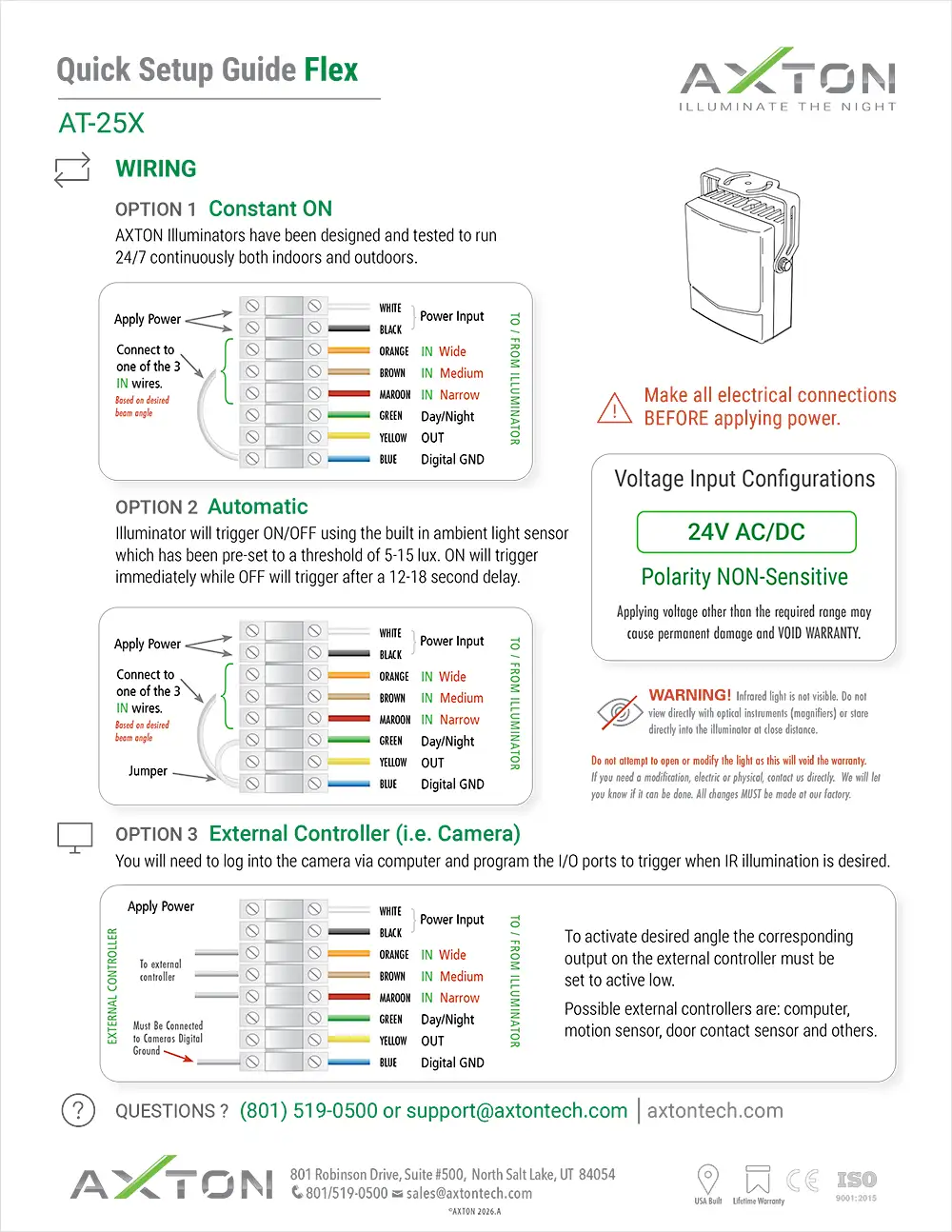

- I/O Ports Sync with Sensors, Camera, I/O Port Devices
- Automatic Day/Night Switch
- Rugged Construction – Vandal Resistant
- Lifetime Warranty, Designed and Manufactured in the USA
- Pan/Tilt U Bracket Included
Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.
AT-15Z-S.15ZS28
Zoom 15Z IR Illuminator – Range
Specifications
Zoom 15Z | |
| Wavelength | 850nm Infrared |
| Input Power | 24-36VDC or 24VAC |
| Features | Input/Output Ports Day/Night Sensor |
| Angles | 90°, 60° x 30° (elliptical), 20° x 10° (elliptical) |
| Power Consumption | 15 Watts |
| Operating Temperature | -58°to140°F / -50° to 60°C |
| Dimensions | 5.25" x 3" x 7.25"/ 133 x 76 x 184mm |
| Weight | 1.25 lbs/ .56kg |
| Environmental | Outdoor IP67 Rated |
| Mounting | Pan/Tilt U Bracket |
Part Numbers
WATTS | DESCRIPTION | PART NUMBER |
| 15 | 15W, Zoom Series, Day/Night Sensor, I/O Ports, 24-36VDC or 24VAC Input, 850nm, 90˚, 60˚x30˚, 20˚x10˚ | AT-15Z-S.15ZS28 |
