Description
Blaze AT-11W-S Security Floodlight – Beam Angle Options
See the chart below to select the light angle coverage option that matches the range needed for your application.
*Article: About Elliptical Light Beam Angles

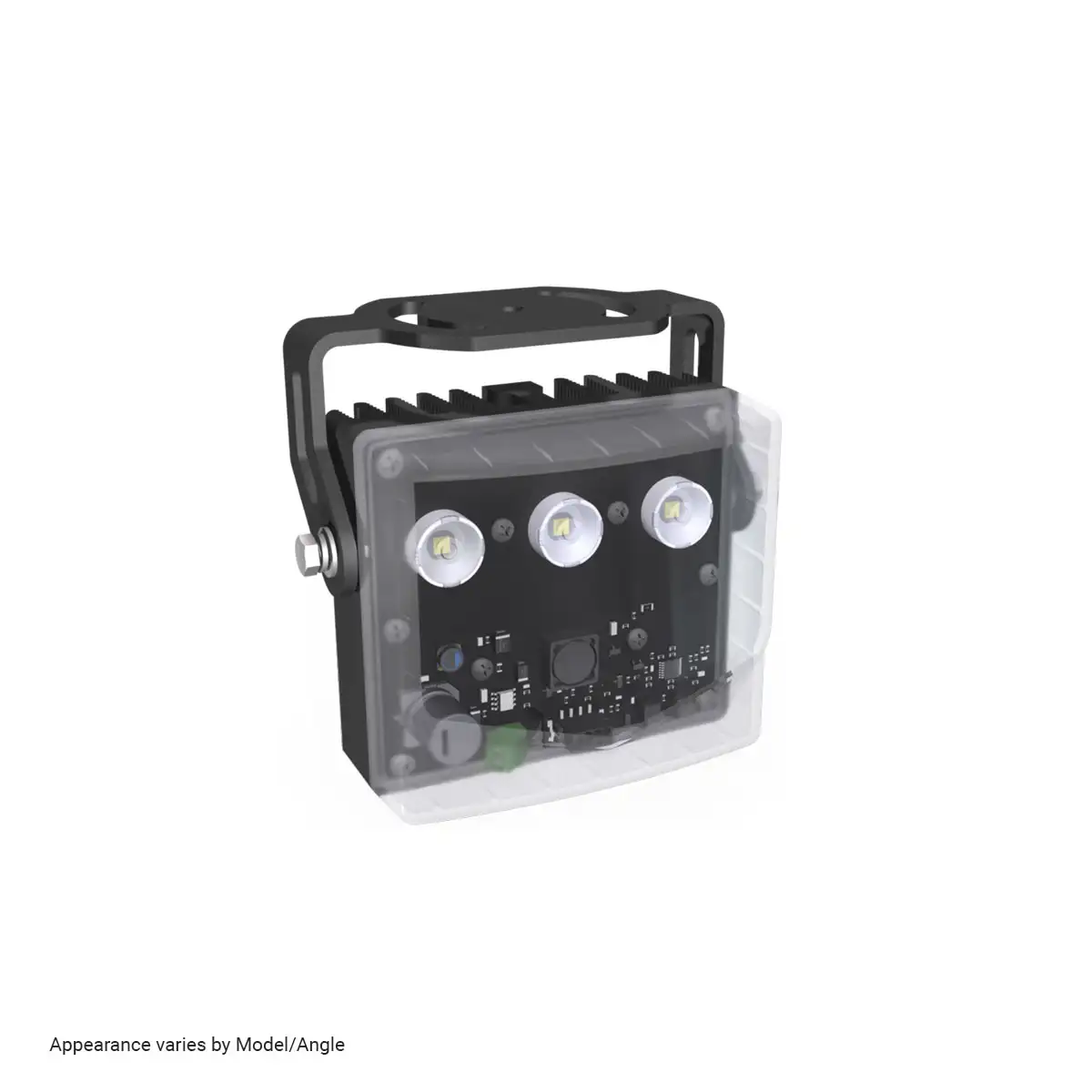

Blaze 11W LED Floodlight
$568.00 MSRP
The Blaze AT-11W-S White LED light is specifically designed as surveillance lighting solution, including perimeter lighting. Blaze lights have a built-in light sensor and can be setup to turn ON/OFF depending on lighting conditions. Or, use the light’s I/O ports to connect to a camera, motion sensor or other I/O port device to turn the light ON/OFF based upon preset conditions.
- Energy Efficient – Advanced LED Technology
- White Light – Lumens: 2,250 LM/ Temp: 5000K
- Illumination Range: up to 653 ft. (10˚)/ 145ft (90˚)
- Beam Angle Options: 120˚, 90˚ (60˚x 30˚ elliptical*) 30˚, (20˚x10˚) or 10˚
- Power Consumption – 11 Watts
- Outdoor IP67 Rated – Waterproof
- Input Voltage – 24 to 36 VDC or 24 VAC
- I/O Ports Sync with Sensors, Camera, I/O Port Devices
- Automatic Day/Night Sensor
- Rugged Construction: powder-coated aluminum extrusion body, polycarbonate face/lens
- Lifetime Warranty, Designed and Manufactured in the USA
- Pan/Tilt U Bracket Included

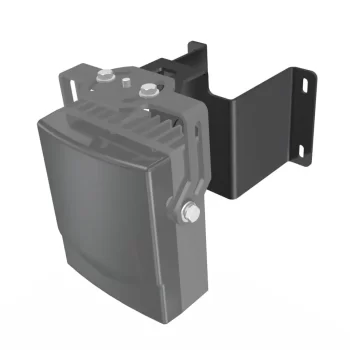

Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.
AT-11W-S.11WS2110, AT-11W-S.11WS212010, AT-11W-S.11WS2130, AT-11W-S.11WS216030, AT-11W-S.11WS21120, AT-11W-S.11WS2190, AT-11W, AT-11W-S,Axton LED Chandelier,Axton LED 28 inch
Specifications
Blaze 11W Specifications | |
| White Light | 2,250 Lumens |
| Temperature | 5000K |
| Input Voltage | 24-36 VDC or 24 VAC |
| Features | • Input/Output Ports • Day/Night Sensor |
| Power Consumption | 11 Watts |
| Operating Temperature | -58°to140°F / -50° to 60°C |

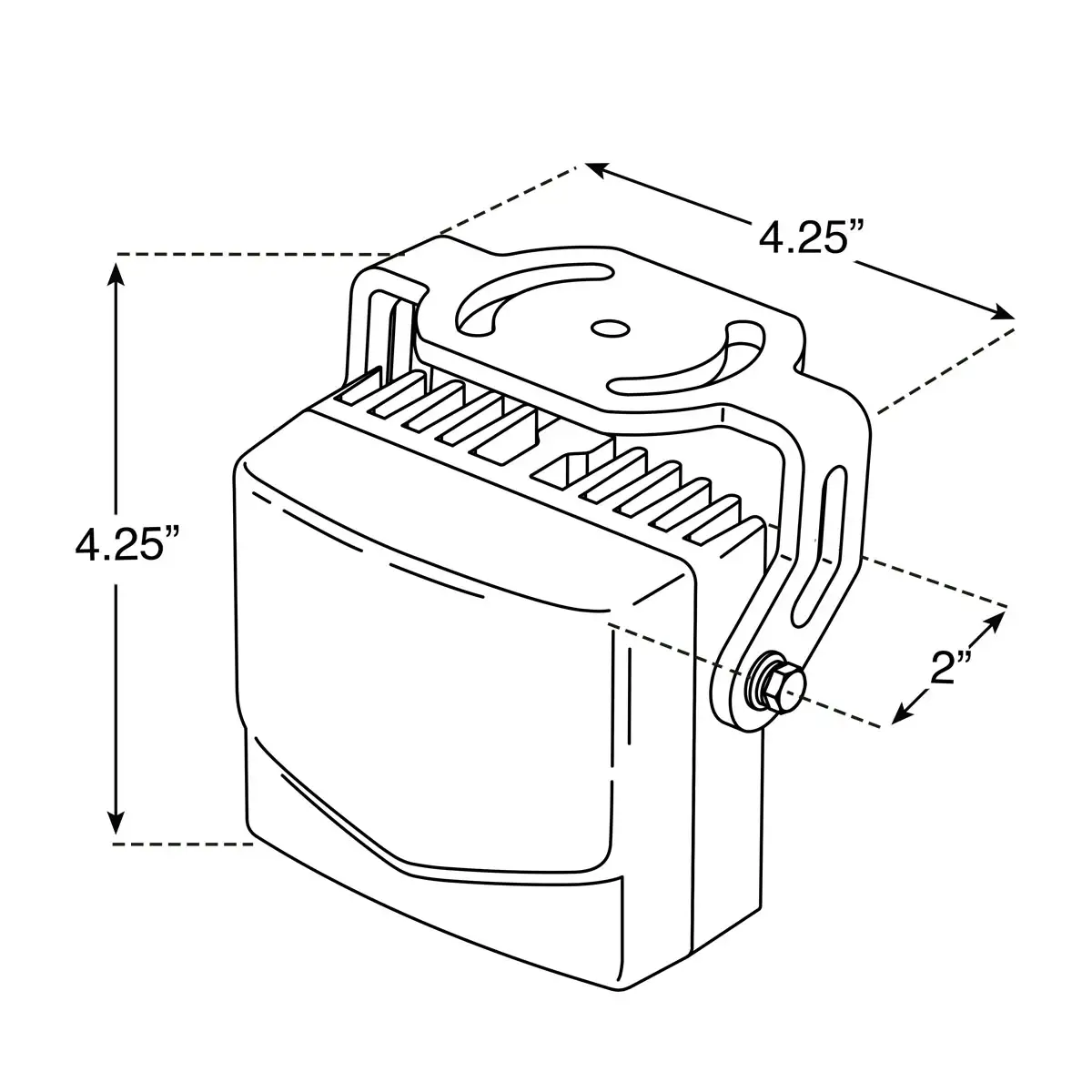

| Dimensions | 4.25” x 2” x 4.25” / 108 x 51 x 108mm |
| Weight | 1.2 lbs/ .54 kg |
| Environmental | Outdoor IP67 Rated |
| Mounting | Pan/Tilt U bracket |
Part Numbers
ANGLE | DESCRIPTION | PART NUMBER |
| 10˚ | 11W, Blaze Series, Day/Night Sensor, I/O Ports, 24-36VDC or 24VAC Input, White, 10° | AT-11W-S.11WS2110 |
| 20˚ x 10˚ | 11W, Blaze Series, Day/Night Sensor, I/O Ports, 24-36VDC or 24VAC Input, White, 20˚ x 10° | AT-11W-S.11WS212010 |
| 30° | 11W, Blaze Series, Day/Night Sensor, I/O Ports, 24-36VDC or 24VAC Input, White, 30° | AT-11W-S.11WS2130 |
| 60° x 30˚ | 11W, Blaze Series, Day/Night Sensor, I/O Ports, 24-36VDC or 24VAC Input, White, 60° x 30˚ | AT-11W-S.11WS216030 |
| 90° | 11W, Blaze Series, Day/Night Sensor, I/O Ports, 24-36VDC or 24VAC Input, White, 90° | AT-11W-S.11WS2190 |
| 120° | 11W, Blaze Series, Day/Night Sensor, I/O Ports, 24-36VDC or 24VAC Input, White, 120° | AT-11W-S.11WS21120 |
Video
Blaze White Floodlights Unboxing & Setup Guide Basics
Watch on YouTube
