Hybrid AT-25H-S IR & White Illuminator – Range/Angle Options
See the chart below to select the light angle coverage option that matches the range needed for your application.

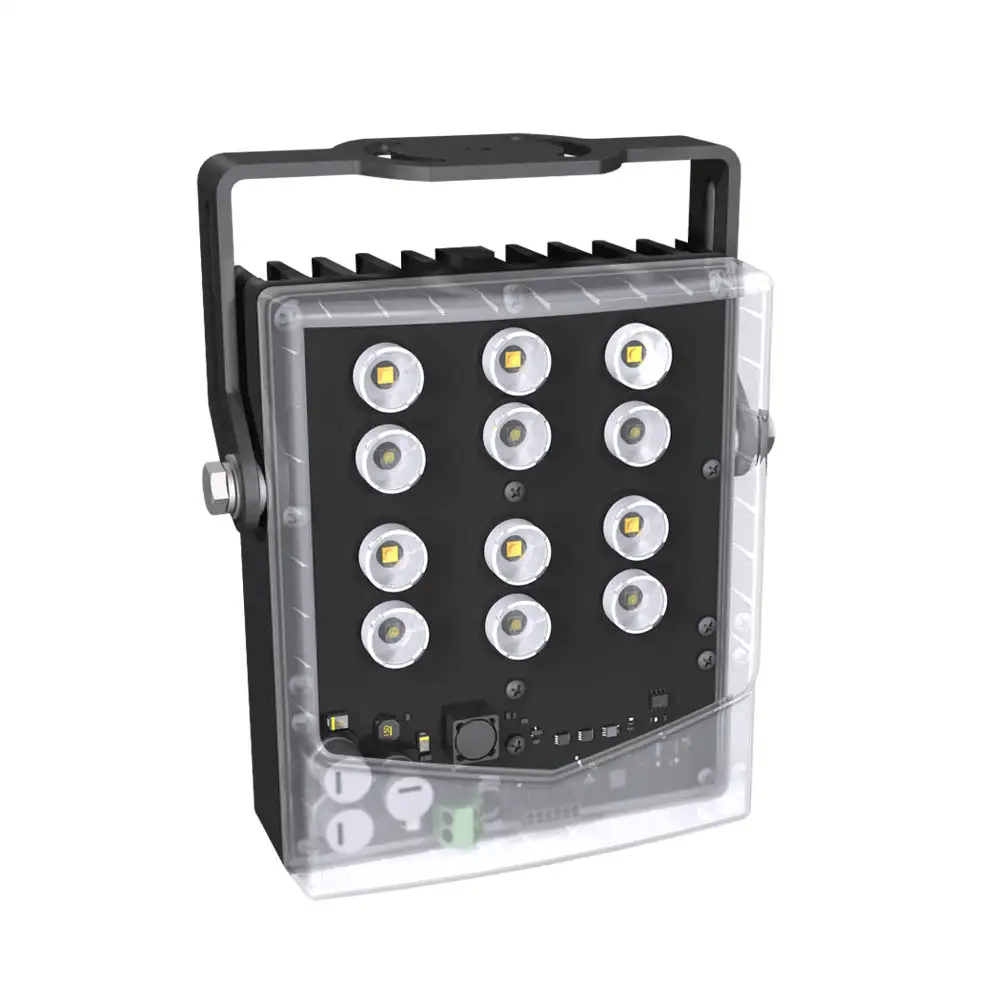

Hybrid 25H, IR Illuminator & White Light
The Hybrid AT-25H-S IR Illuminator with event activated White Light, operates in IR Mode by default until a sensor or other I/O port connected device activates the White floodlight. The white visible light aids the camera to capture important color information, and alerts the intruder. Once the event is over, the light switches back to IR mode.
- Energy Efficient – Advanced LED Technology
- Wavelength – 850nm Infrared & White Visible Light
- White Light – Lumens 4,200 /Temp. 5000K
- Outdoor IP67 Rated
- Illumination Range: up to 800 ft. (10˚)
- Input/Output (I/O) Port Sync with Camera, Sensors, Devices
- Angle/Coverage Options: 150˚,90˚,60˚x30˚, 30˚,20˚x10˚ or 10˚
- Power Consumption – 25 Watts
- Input Voltage – 24-36 VDC or 24 VAC
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Pan/Tilt U Bracket Included
Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.
AT-25H-S.25HS218150, AT-25H-S.25HS2186030, AT-25H-S.25HS21830, AT-25H-S.25HS2182010, AT-25H-S.25HS21810, AT-25H-S,AT-25H-S.25HS21890
Specifications
Hybrid AT-25H-S | |
| Wavelength IR | 850nm |
| White Light | Lumens: 4,200 lm / Temp: 5000K |
| Input Voltage | 24-36 VDC or 24 VAC |
| Power Consumption | 25 Watts |
| Features | Input/Output Ports |
| Operating Temperature | -58° to 140°F / -50° to 60°C |
| Dimensions | 5.25" x 3" x 7.25" / 133 x 76 x 184mm |
| Weight | 3 lbs /1.3kg |
| Environmental | Outdoor IP67 Rated |
| Mounting | Pan/Tilt U bracket |
Part Numbers
| ANGLE | DESCRIPTION | PART NUMBER |
| 10˚ | 25W, Hybrid Series, I/O Ports, 24-36VDC or 24VAC Input, White/850nm, 10° | AT-25H-S.25HS21810 |
| 20°x10° | 25W, Hybrid Series, I/O Ports, 24-36VDC or 24VAC Input, White/850nm, 20°x10° | AT-25H-S.25HS2182010 |
| 30° | 25W, Hybrid Series, I/O Ports, 24-36VDC or 24VAC Input, White/850nm, 30° | AT-25H-S.25HS21830 |
| 60°x30° | 25W, Hybrid Series, I/O Ports, 24-36VDC or 24VAC Input, White/850nm, 60°x30° | AT-25H-S.25HS2186030 |
| 90˚ | 25W, Hybrid Series, I/O Ports, 24-36VDC or 24VAC Input, White/850nm, 90° | AT-25H-S.25HS21890 |
| 150° | 25W, Hybrid Series, I/O Ports, 24-36VDC or 24VAC Input, White/850nm, 150° | AT-25H-S.25HS218150 |
