Blaze 360° White Floodlight Range

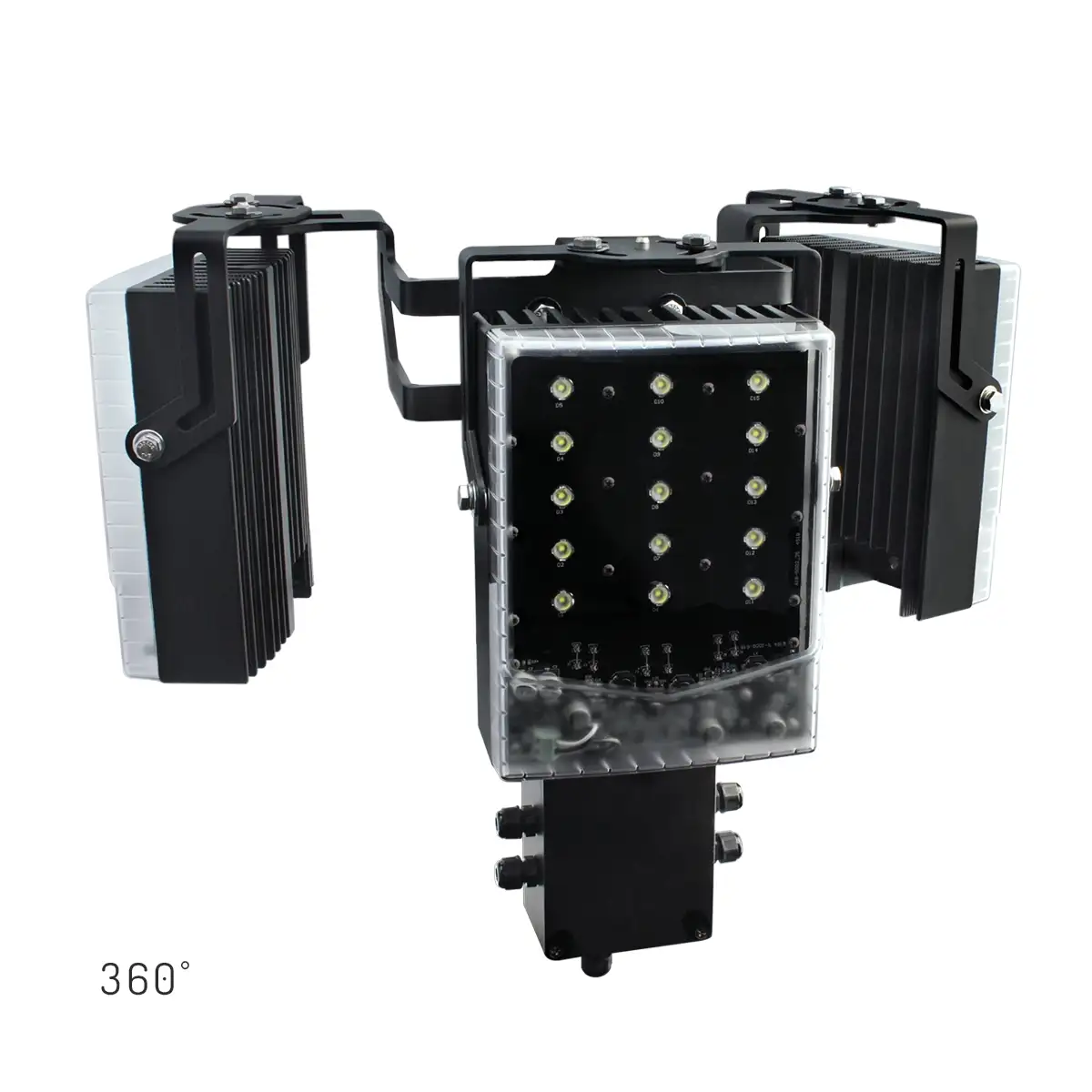

Blaze 360˚ LED Floodlight
Professional 360˚ Wide-Angle LED Floodlight for security systems in demanding outdoor environments. The Blaze 360˚ Floodlight offers wide angle, long range, high intensity white light in one easy to deploy solution. The Input/Output (I/O) ports connect to a camera, sensor or other I/O port device to turn the light ON/OFF based on preset conditions. For easy setup use the built-in light sensor for auto ON/OFF based on ambient light.
- Energy Efficient – Advanced LED Technology
- White Light – Temp. 5000K
- Lumens: 170 Watt: 35,625Lm / 75 Watt: 15,750Lm
- Range: 360° out to 223ft (170W)/ 148ft (75W)
- I/O Port Control for Camera & Sensor Sync
- Built in light sensor for auto On/Off
- Power Consumption: 75W or 170 Watt options
- Input Voltage options – 24V AC/DC, Universal AC or PoE++ (75W only)
- Outdoor IP67 Rated (weatherproof)
- Rugged Construction: powder-coated aluminum extrusion body, polycarbonate face/lens, Heavy Gauge Steel Mount
- Impact Rating: IK10 (IEC 62262) Vandal-resistant
- Lifetime Warranty, Designed and Manufactured in the USA
- Adjustable Pan/Tilt Mounting System
Pole, Wall or Corner Mounting Adapter required, depending on location
AT-75W-360P.75WP21360, AT-75W-360P.75WP41360,AT-75WE-360P.75WEP31360,AT-170W-360P.170WP21360,AT-170W-360P.170WP41360
Questions about this Product? Model File: 3D .stl file available upon request.
Specifications
Blaze 360˚ White Floodlight Specifications | |
| Wavelength | White Light (5000K) |
| Lumens | 170W: 35,625Lm 75W: 15,750Lm |
| Input Voltage Options | 24V AC/DC, Universal AC or PoE++ (75 Watt Only) |
| Features | • Input/Output Ports • Day/Night Sensor |
| Power Consumption | Options: 75 or 170 Watts |
| Operating Temperature | -58°F to +140°F / -50°C to +60°C |
| Impact Rating: | IK10 (IEC 62262) |

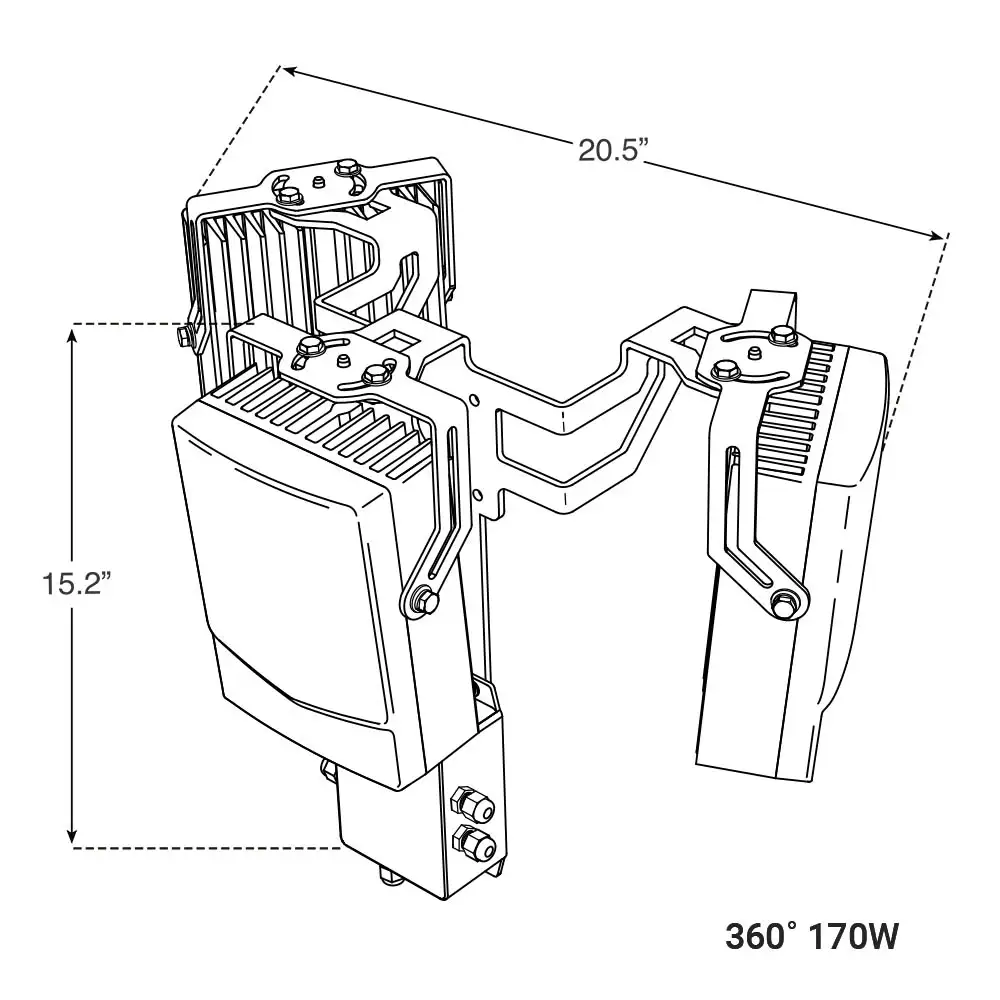

| Dimensions | 20.5” x 15.2” / varies by model |
| Weight | 15 - 28 lbs (varies by model) |
| Environmental | Outdoor IP67 Rated |
| Mounting | Adjustable Pan/Tilt Mounting System |
Part Numbers
| WATTS | DESCRIPTION | PART NUMBER |
| 75 | 75W, Blaze Panoramic Series, 360°, Day/Night Sensor, I/O Ports, 24V AC/DC Input, Includes Junction Box, White Light | AT-75W-360P.75WP21360 |
| 75 (Universal AC) | 75W, Blaze Panoramic Series, 360°, Day/Night Sensor, I/O Ports, Universal AC Input, Includes Junction Box & Power Supply, White Light | AT-75W-360P.75WP41360 |
| 75 (PoE++) | 75W, Blaze Panoramic Series, 360°, Day/Night Sensor, I/O Ports, PoE++ (802.3bt) Input, White Light | AT-75WE-360P.75WEP31360 |
| 170 | 170W, Blaze Panoramic Series, 360°, Day/Night Sensor, I/O Ports, 24V AC/DC Input, Includes Junction Box, White Light | AT-170W-360P.170WP21360 |
| 170 (Universal AC) | 170W, Blaze Panoramic Series, 360°, Day/Night Sensor, I/O Ports, Universal AC Input, Includes Junction Box & Power Supply, White Light | AT-170W-360P.170WP41360 |
