Smart 11S, 850nm IR Illuminator

The Smart AT-11S IR Illuminator allows seamless and precise integration via input output (I/O) ports. Sync with a camera or any other system device with I/O capability. For easy “plug-and-play” integration, automatic DAY/NIGHT switch turns IR ON/OFF, based upon lighting conditions.

  • Wavelength – 850nm Infrared
  • Energy Efficient – Advanced LED Technology
  • Outdoor IP67 Rated (weather-proof)
  • Illumination Range: 540ft (10˚)/ 120ft (90˚)
  • I/O Ports Sync with Sensors, Camera, I/O Port Devices
  • Automatic Day/Night Sensor
  • Six Angle/Coverage Options:
    150˚, 90˚, 60˚x30˚, 30˚, 20˚x10˚ or 10˚
  • Power Consumption – 11 Watts
  • Input Voltage – 24-36 VDC or 24 VAC
  • Rugged Construction: All Metal Housing/Bracket, Poly-carbonate Face/Lens
  • Designed and Manufactured in the USA
  • Lifetime Warranty with Advanced Replacement
  • Pan/Tilt U Bracket Included
    Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.
How to Buy
Categories: , , , Tags: , , , , , , , , , , , , , , , , , , ,

Description

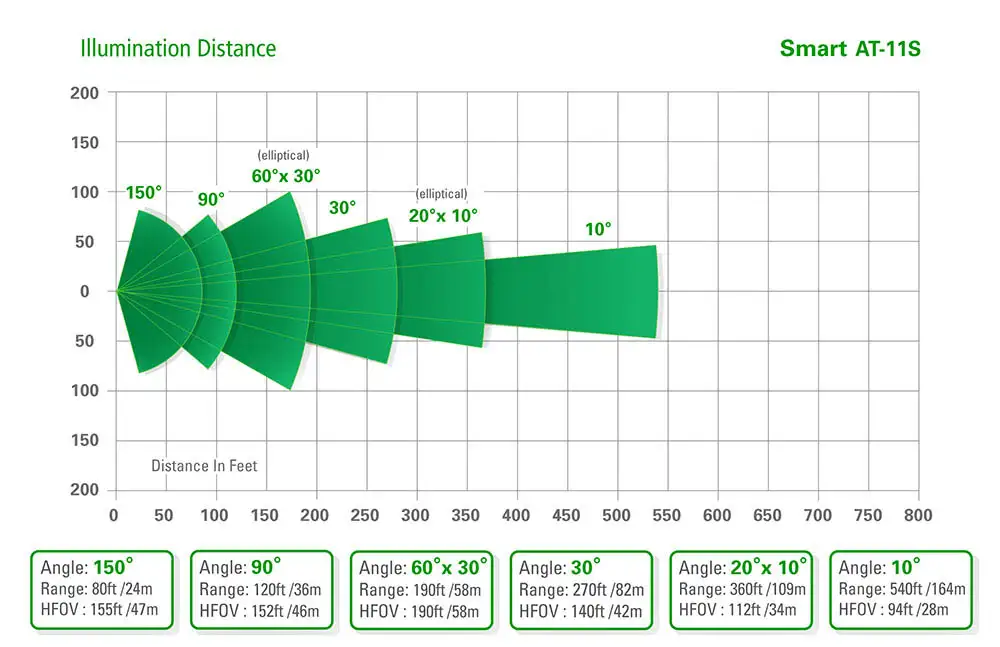

Smart 11S IR Illuminator, (11 watt) – Angle/Range Options
See the chart below to select the light angle coverage option that matches the range needed for your application.

IR Illuminator - AXTON Smart IR - AT-11S Beam Pattern

Specifications

Smart 11S Specifications
Wavelength 850nm Infrared
Input Voltage 24-36 VDC or 24 VAC
Power Consumption 11 Watts
Features Input/Output Ports
Day/Night Sensor
Operating Temperature -58° to 140°F / -50° to 60°C
Dimensions 4.25”x2”x4.25” / 108x51x108mm
Weight 1.25 lbs/ .56kg
Environmental Outdoor IP67 Rated
Mounting Pan/Tilt U-bracket
WordPress Data Table

(Wavelength Option: 730nm Deep Red, contact us for details)

Datasheet



IR illuminator Smart 11S Datasheet

Setup

Quick Setup Guide Low Voltage

AXTON LED Floodlights Setup Guide (Low Voltage)

Part Numbers

ANGLE DESCRIPTION PART NUMBER
10˚ 11W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 10° 		AT-11S.11S2810
20°x10° 11W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 20°x10° 		AT-11S.11S282010
30° 11W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 30° 		AT-11S.11S2830
60°x30° 11W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 60°x30° 		AT-11S.11S286030
90˚ 11W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 90° 		AT-11S.11S2890
150° 11W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 150° 		AT-11S.11S28150
