Smart 25S IR Illuminator

Essential Infrared

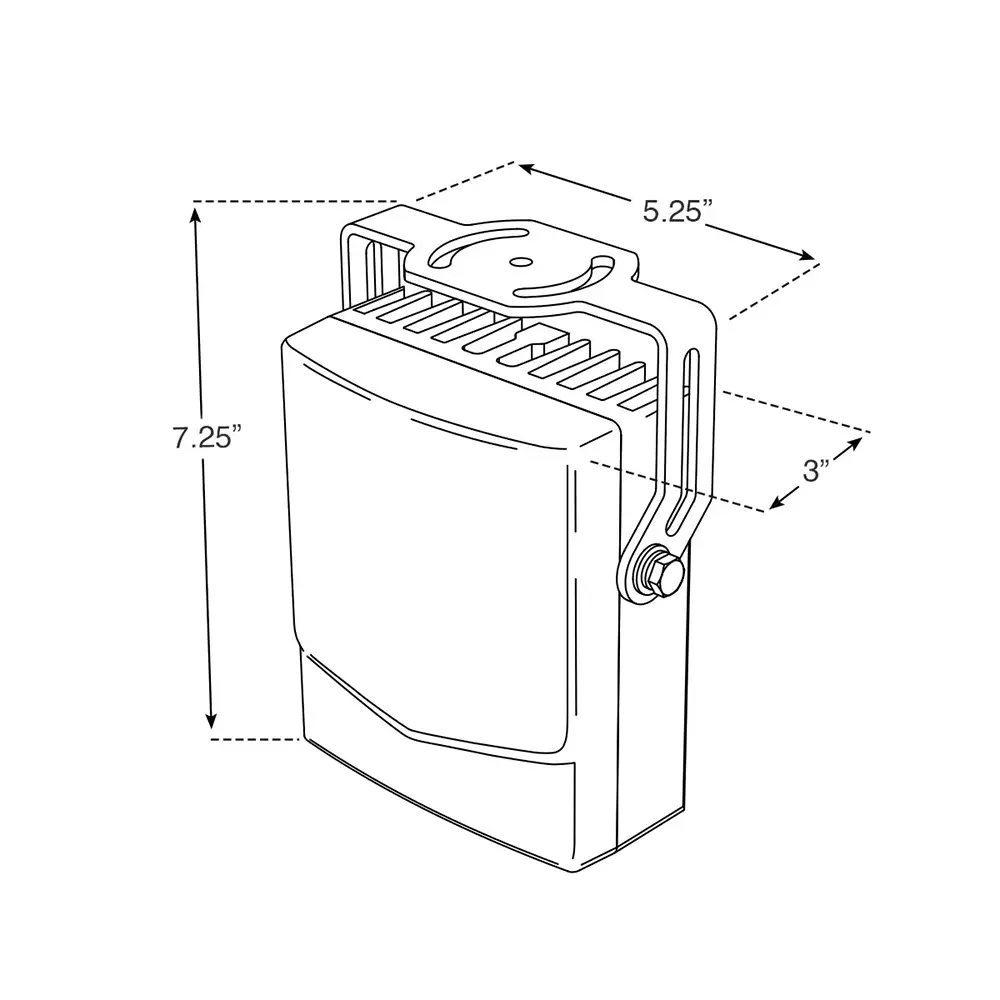

  • LED Lighting-AXTON- 25w - Drawing

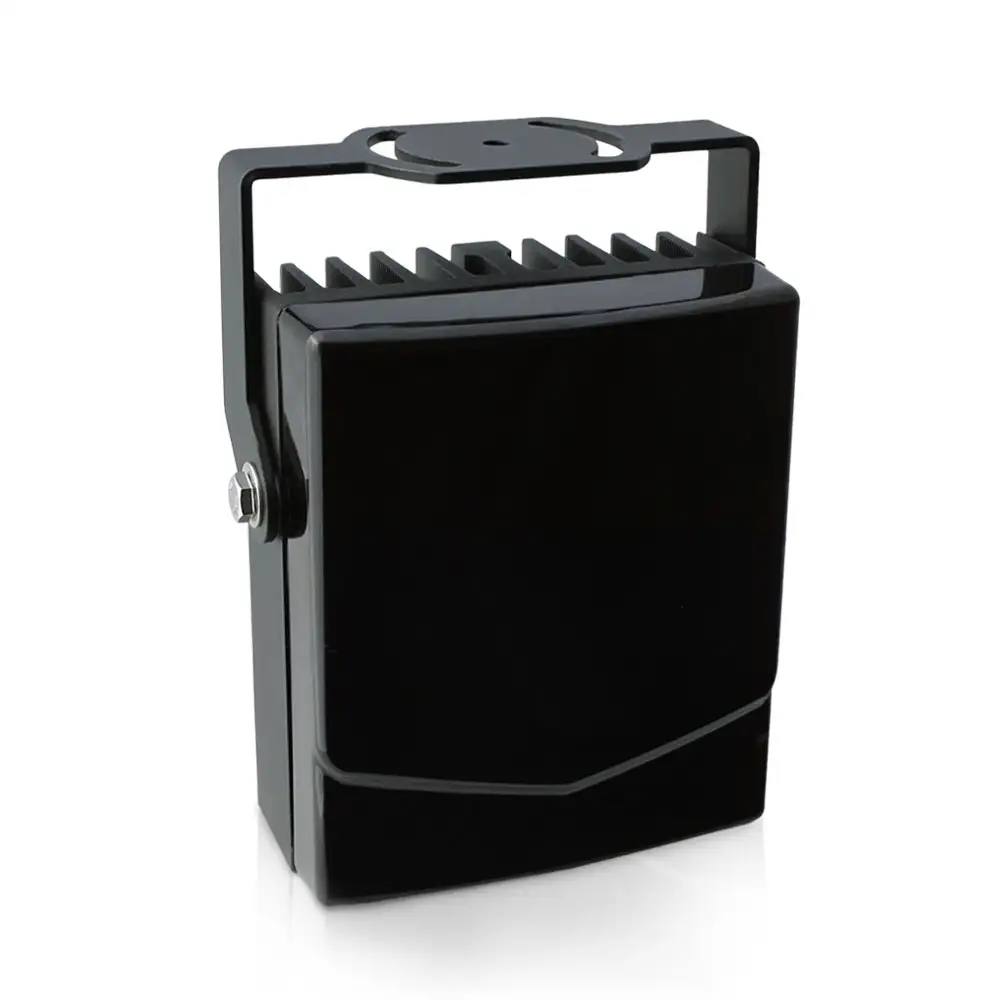

  • AXTON AT-25 IR Illuminator

Smart 25S IR Illuminator 850nm

$823.00

The Smart AT-25S IR Illuminator allows seamless and precise integration via input output (I/O) ports. Sync with a camera or any other system device with I/O capability. For easy “plug-and-play” integration, automatic DAY/NIGHT switch turns IR ON/OFF, based upon lighting conditions.

  • Wavelength – 850nm Infrared
  • Energy Efficient – Advanced LED Technology
  • Outdoor IP67 Rated (waterproof)
  • I/O Port Sync with Camera, Motion Sensors or other I/O Port Device
  • Automatic Day/Night Sensor
  • Illumination Range: 800ft (10˚)/175ft (90˚)
  • Six Beam Angle/Range Options:
    150˚, 90˚, (60˚x 30˚), 30˚, (20˚x 10˚) or 10˚
  • Power Consumption – 25 Watts
  • Input Voltage – 24-36 VDC or 24 VAC
  • Rugged Construction: All Metal Housing/Bracket, Polycarbonate Face/Lens
  • Designed and Manufactured in the USA
  • Lifetime Warranty with Advanced Replacement
  • Pan/Tilt U Bracket Included
    Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.

How to Buy

SKU: AT-25S Categories: , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Smart 25S IR Illuminator, (25 watt) – Beam Angle/Range Options
See the chart below to select the light angle coverage option that matches the range needed for your application.

IR Illuminator - AXTON Smart AT-25S Range

Specifications

Smart AT-25S Specifications
Wavelength 850nm Infrared
Input Voltage 24-36 VDC or 24 VAC
Power Consumption 25 Watts
Features Input/Output Ports
Day/Night Sensor
Operating Temperature -58° to 140°F / -50° to 60°C
Dimensions 5.25” x 3” x 7.25”/ 133 x 76 x 184mm
Weight 3 lbs /1.3kg
Environmental Outdoor IP67 Rated
Mounting Pan/Tilt U-bracket
WordPress Data Table

Datasheet



IR illuminator Smart AT-25S Datasheet

Datasheet PDF

Setup

Quick Setup Guide Low Voltage

AXTON LED IR Illuminators & White Floodlight Setup Guide (Low Voltage)

Part Numbers

ANGLE DESCRIPTION PART NUMBER
10˚ 25W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 10° 		AT-25S.25S2810
20°x10° 25W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 20°x10° 		AT-25S.25S282010
30° 25W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 30° 		AT-25S.25S2830
60°x30° 25W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 60°x30° 		AT-25S.25S286030
90˚ 25W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 90° 		AT-25S.25S2890
150° 25W, Smart Series, Day/Night Sensor, I/O Ports,
24-36VDC or 24VAC Input, 850nm, 150° 		AT-25S.25S28150
WordPress Data Table

Video

Smart IR Illuminators Unboxing & Setup Guide Basics

Watch on YouTube

smart-Video

Watch on AXTON’s Product Videos Page
