Pulsar 200R, Pulsed IR or White Light

Call for Price

Pulsar AT-200R pulsed lighting seamlessly integrates with the camera shutter via I/O ports (Input/Output ports). Pulsed lights deliver up to 10x more light output, which is required to track fast moving objects or processes such as LPR applications, and machine vision.

  • Wavelength Options:
    850nm IR, 730nm IR (deep red) or White Light
  • Three Angle Options: (50°x 20° Elliptical*) 20˚x10˚ or 10˚
  • I/O Ports Sync with Sensors, Camera, I/O Port Devices
  • Built-In Pulse Generator & Controller
  • Internal/External Triggering
  • Peak Power: 200 Watts
  • Repetition Rate: Single Shot, to 50Hz
  • Triggering Input Range: 3.3 to 24V
  • Output Optical Pulse Duration: (0.1 to 2)ms
  • Input Voltage: 24-36 VDC

*Article: About Elliptical Light Beam Angles

Get a Quote

Categories: , , Tags: , , , , , , , , , , , , , , Brand:

Description

Pulsar AT-200R Range
Wavelength
Angle
Distance
HFOV
850nm
Infrared 		50° x 20° 131ft/40m 110ft/33m
20˚ x 10˚ 276ft/84m 95ft/29m
10˚ 342ft/104m 59ft/18m
730nm
Deep Red 		50° x 20° 122ft/37m 103ft/31m
20˚ x 10˚ 255ft/77m 88ft/27m
10˚ 316ft/96m 54ft/16m
White Light 50° x 20° 122ft/37m 103ft/31m
20˚ x 10˚ 255ft/77m 88ft/27m
10˚ 316ft/96m 54ft/16m
WordPress Data Table
Pulsar Angle Options
WordPress Data Table



Note: Highly reflective license plate coatings will increase the lights range of illumination up to 3x.

Specifications

PULSAR AT-200R
Wavelength Options 850nm IR, 730nm Red
or White Light (5000K)
Input Power 24-36 VDC
Features Built-In Pulse Generator & Controller
Input/Output Ports
Peak Power 200 Watts
Optical Pulse Duration 0.1 – 2 ms
Repetition Rate Single Shot - to 50 Hz
Triggering Internal/External
Triggering Input Range 3.3-24 V
Operating Temperature -58°F...+140°F / -50°C...+60°C
Dimensions w/bracket 6.25” x 3.5” x 9.25”/ 159 x 89 x 235mm
Weight 5.5 lbs/2.5kg
Environmental IP67 Rated - Outdoor or Indoor
Mounting Pan/Tilt U-bracket
WordPress Data Table

Datasheet

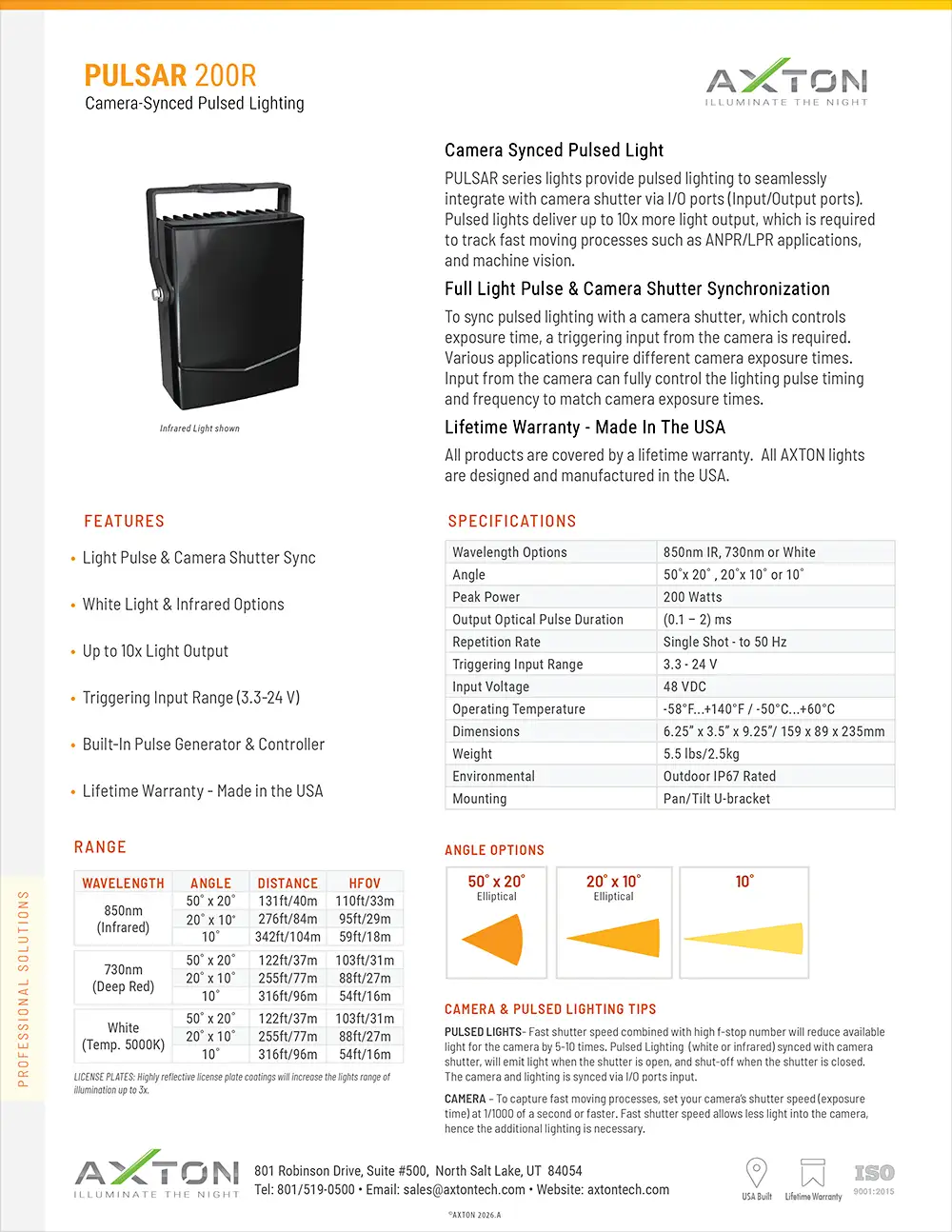

Pulsar_200R Datasheet

Timing Dia.

Pulsar Timing Diagram

Setup

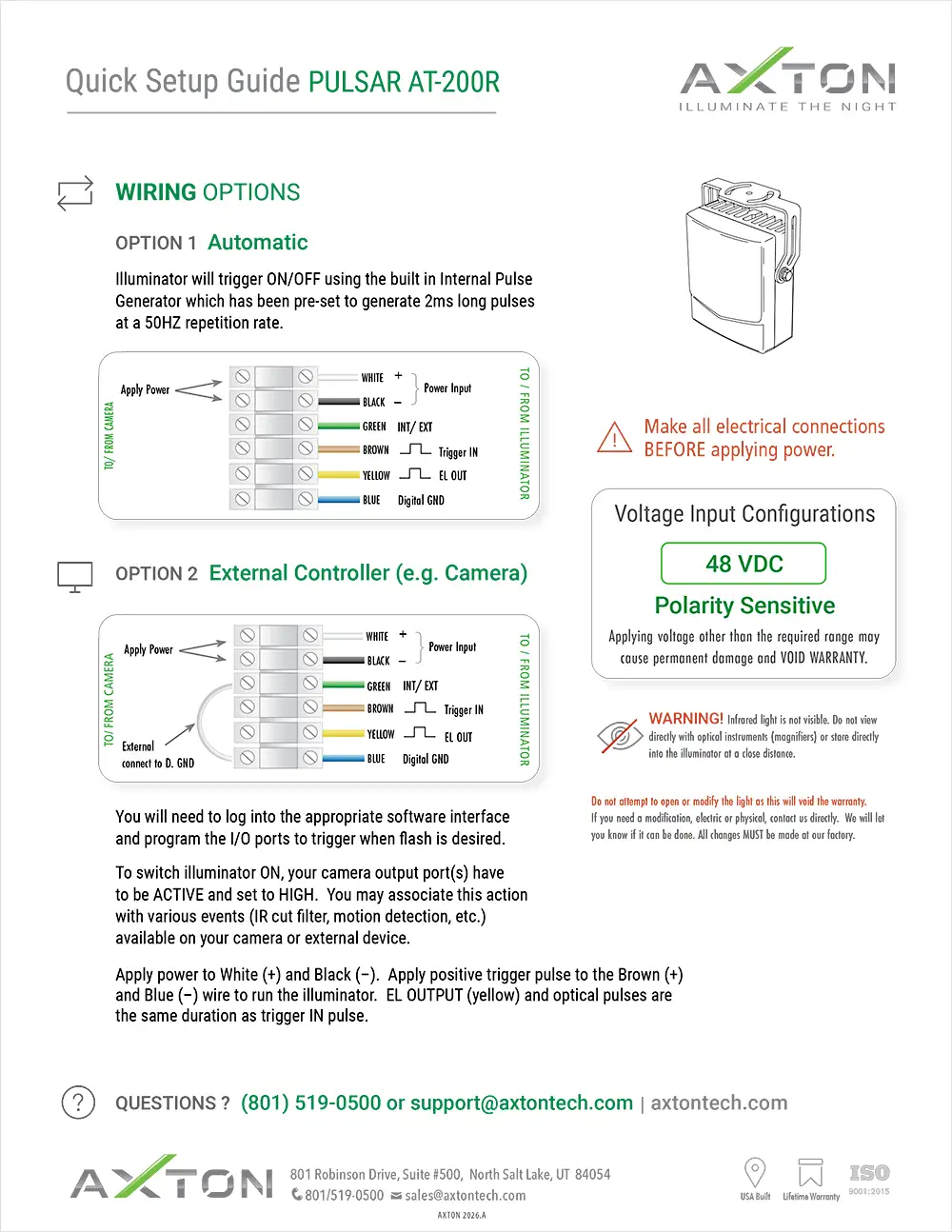

Setup_Guide_Pulsar_Pulsed lighting

Part Numbers

ANGLE WAVELENGTH DESCRIPTION PART NUMBER
50˚ x 20˚ 850nm 850nm, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
50x20˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R185020
730nm 730nm, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
50x20˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R175020
White White, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
50x20˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R115020
20˚ X 10˚ 850nm 850nm, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
20˚x10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R182010
730nm 730nm, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
20˚x10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R172010
White White, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
20˚x10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R112010
10˚ 850nm 850nm, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R1810
730nm 730nm, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R1710
White White, 200W, Pulsar Series, I/O Ports, 24 to 36 VDC Input,
10˚, Internal/External Triggering, Outdoor IP67 Rated 		AT-200R.200R1110
WordPress Data Table
