Blaze 11WE – White Light – Beam Angle Options

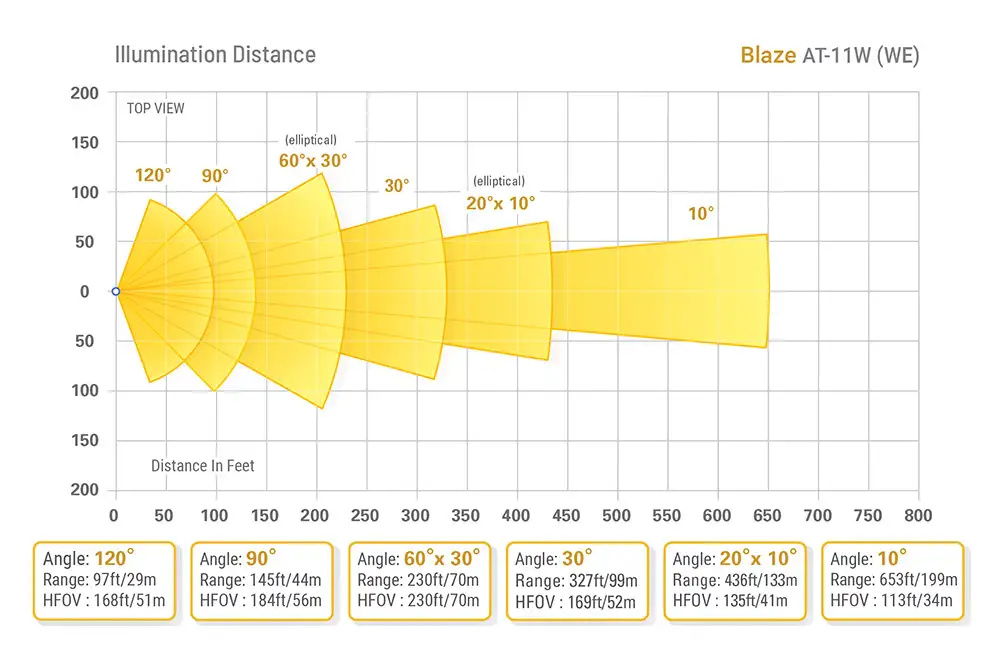

See the chart below to select the light angle coverage option that matches the range needed for your application.
*Article: About Elliptical Light Beam Angles
Please, login to see prices and buy
The Blaze Series 11WE PoE Powered White LED light is specifically designed as surveillance lighting solution, including perimeter lighting. Blaze lights have a built-in light sensor and can be setup to turn ON/OFF depending on lighting conditions. Or, use the light’s I/O ports to connect to a camera, motion sensor or other I/O port device to turn the light ON/OFF based upon preset conditions.
PoE Set-up Basics: PoE Powered Lighting Set-Up.
AT-11WE-S.11WES3110, AT-11WE-S.11WES312010, AT-11WE-S.11WES3130, AT-11WE-S.11WES316030, AT-11WE-S.11WES31120, AT-11WE-S.11WES3190
See the chart below to select the light angle coverage option that matches the range needed for your application.
*Article: About Elliptical Light Beam Angles
Blaze 11WE (PoE) Specifications | |
White Light | 2,250 Lumens |
Temperature | 5000K |
Input Voltage | PoE (or PoE+) |
Features | • Input/Output Ports • Day/Night Sensor |
Power Consumption | 11 Watts |
Operating Temperature | -58°to140°F / -50° to 60°C |
Dimensions | 4.25” x 2” x 4.25” / 108 x 51 x 108mm |
Weight | 1.2 lbs/ .54 kg |
Environmental | Outdoor IP67 Rated |
Mounting | Pan/Tilt U bracket |
ANGLE | DESCRIPTION | PART NUMBER |
10˚ | 11W, Blaze Series, Day/Night Sensor, I/O Ports, PoE Input, White, 10° | AT-11WE-S.11WES3110 |
20˚ x 10˚ | 11W, Blaze Series, Day/Night Sensor, I/O Ports, PoE Input, White, 20˚ x 10° | AT-11WE-S.11WES312010 |
30° | 11W, Blaze Series, Day/Night Sensor, I/O Ports, PoE Input, White, 30° | AT-11WE-S.11WES3130 |
60° x 30˚ | 11W, Blaze Series, Day/Night Sensor, I/O Ports, PoE Input, White, 60° x 30˚ | AT-11WE-S.11WES316030 |
90° | 11W, Blaze Series, Day/Night Sensor, I/O Ports, PoE Input, White, 90° | AT-11WE-S.11WES3190 |
120° | 11W, Blaze Series, Day/Night Sensor, I/O Ports, PoE Input, White, 120° | AT-11WE-S.11WES31120 |
