Blaze Panoramic 180˚ White LED Floodlight

The Blaze 180˚ White LED Floodlight offers an extra wide angle and long range in one easy to deploy solution. To adapt to the specific location, individual light panels can be rotated inward or outward for added flexibility. The Input/Output (I/O) ports can be used connect to a camera, motion sensor or other I/O port device to turn the light ON/OFF based upon preset conditions. For easy setup, the integrated DAY/NIGHT sensor turns the light ON/OFF based upon ambient lighting.

  • Energy Efficient – Advanced LED Technology
  • White Light – Temp. 5000K
  • Lumens: 170 Watt: 35,625Lm / 75 Watt: 15,750Lm
  • Range: 180° out to 508ft (170W)/ 338ft (75W)
  • Outdoor IP67 Rated – Waterproof
  • Power Consumption: 75W or 170 Watt options
  • Input Voltage options – 24V AC/DC, Universal AC or PoE++ (75W only)
  • I/O Port Sync with Motion Sensor, Camera, I/O Port Devices
  • Automatic Day/Night Sensor
  • Rugged Construction: powder-coated aluminum extrusion body, polycarbonate face/lens, Heavy Gauge Steel Mount
  • Designed and Manufactured in the USA
  • Lifetime Warranty with Advanced Replacement
  • Adjustable Pan/Tilt Mounting System

    Pole, Wall or Corner Mounting Adapter required, depending on location

AT-33W-180P.33WP21180, AT-33W-180P.33WP41180, AT-33WE-180P.33WEP31180, AT-75W-180P.75WP21180, AT-75W-180P.75WP41180,AT-75WE-180P.75WEP38180,AT-170W-180P.170WP21180,AT-170W-180P.170WP41180, 180 degree LED Flood Light

How to Buy

Questions about this Product?   Model File: 3D .stl file available upon request.

Categories: , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , ,

Description

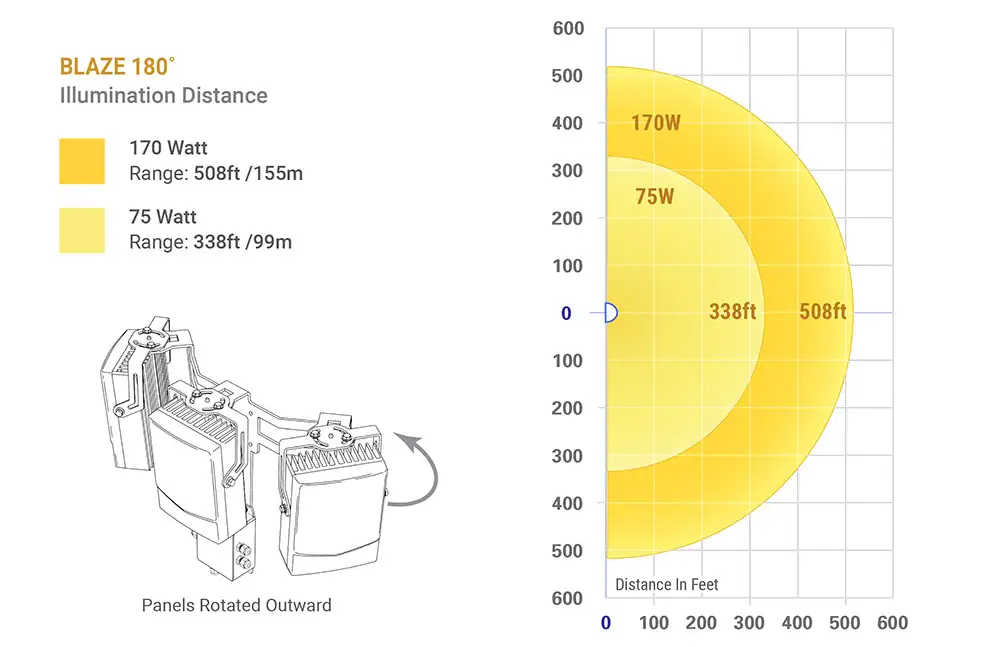

Blaze 180° White Floodlight Beam Angles & Range

Blaze 180 degree floodlight Range

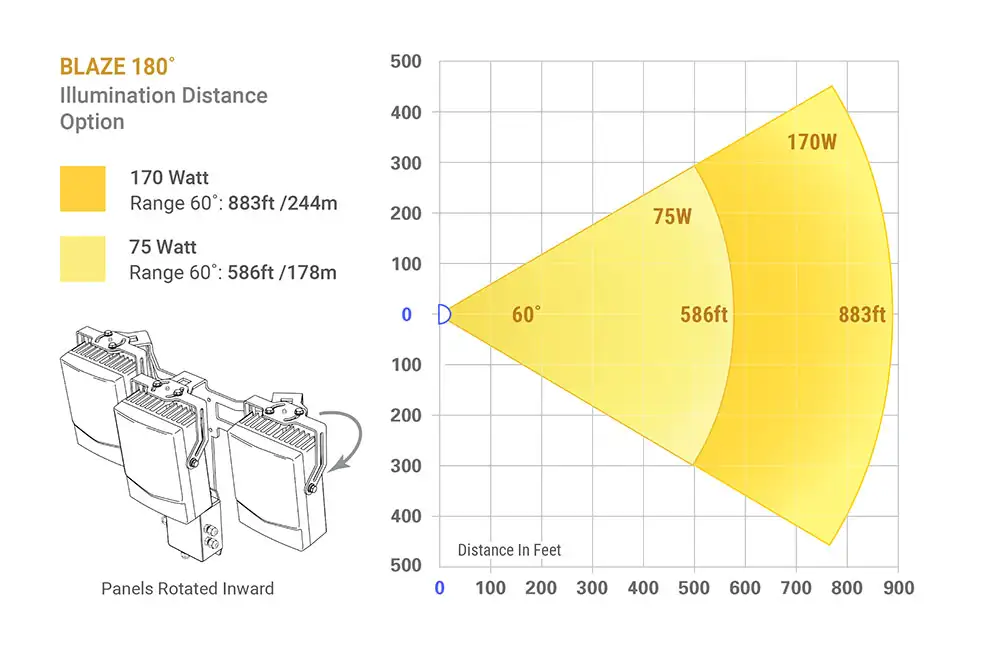

Range Option Light Panels Rotated 60° Shown*

Blaze 180 - 60˚ Range Option

*Light Panels can be rotated to achieve beam angles & ranges in-between those shown.
Various lenses available, contact us if you need a range or angle other then those shown above.

Specifications

Blaze 180˚ Floodlight
Wavelength White Light (temp: 5000K)
Lumens 170W: 35,625Lm/ 75W: 15,750Lm
Input Voltage Options 24V AC/DC
Universal AC
PoE++ (802.3bt) 75 Watt only
Features • Input/Output Ports
• Day/Night Sensor
Power Consumption Options: 75W or 170 Watts
Operating Temperature -58°F to 140°F / -50°C to 60°C

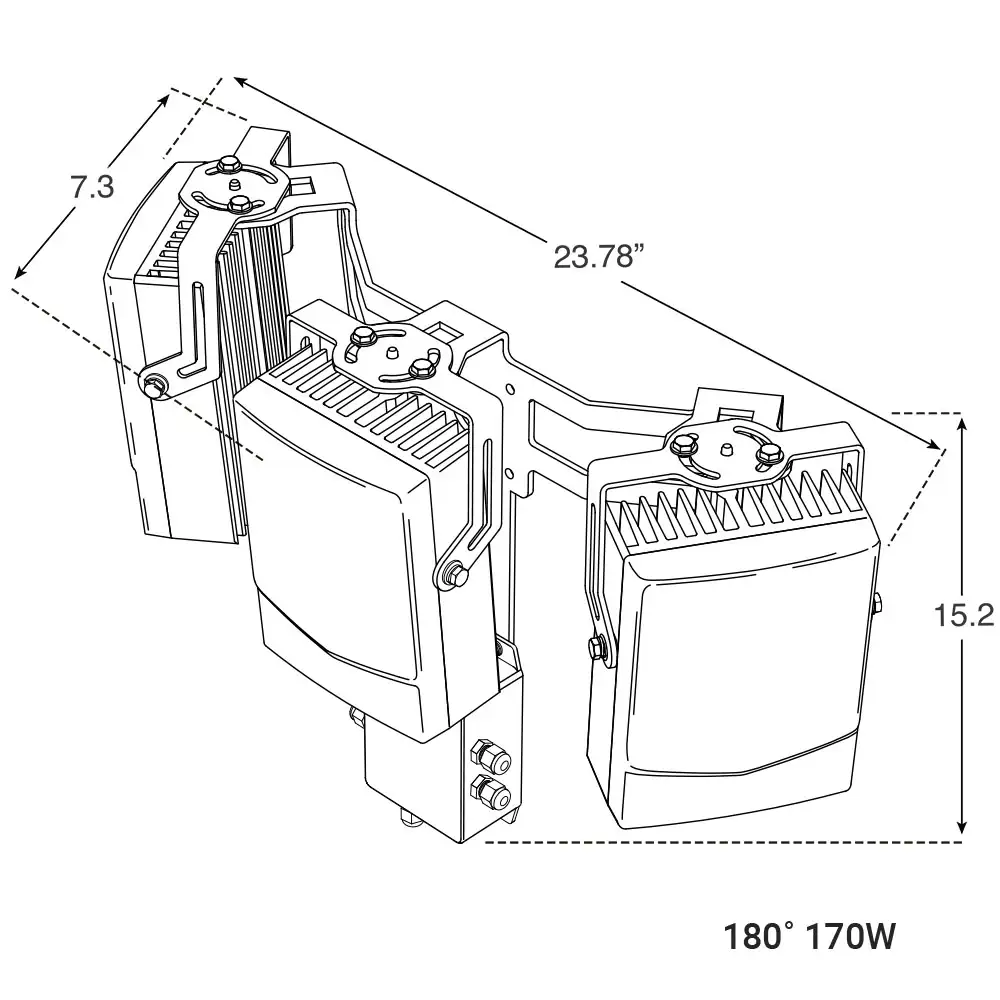

Dimensions 23.78" x 7.3" x 15.2" varies by model
Weight 15 - 28 lbs (varies by model)
Environmental Outdoor IP67 Rated
Mounting Adjustable Pan/Tilt Mounting System
WordPress Data Table

Datasheet

BLAZE 180 degree floodlight datasheet

Setup

Quick Setup Guide

AXTON LED IR & White Light Setup Guide 180,270,360

PoE Quick Setup Guide



Setup_Guide_AXTON-PoE_Lighting

Part Numbers

WATTS DESCRIPTION PART NUMBER
75 75W, Blaze Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
24V AC/DC Input, Includes Junction Box, White 		AT-75W-180P.75WP21180
75
(Universal AC)		75W, Blaze Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
Universal AC Input, Includes Junction Box & Power Supply, White 		AT-75W-180P.75WP41180
75
(PoE++)		75W, Blaze Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
PoE++ (802.3bt) Input, White 		AT-75WE-180P.75WEP38180
170 170W, Blaze Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
24V AC/DC Input, Includes Junction Box, White 		AT-170W-180P.170WP21180
170
(Universal AC)		170W, Blaze Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
Universal AC Input, Includes Junction Box & Power Supply, White 		AT-170W-180P.170WP41180
