IR Illuminator Panoramic 180˚

Wide-Angle IR Floodlight for Security Cameras

AXTON 180˚ IR Illuminator - 170 Watt

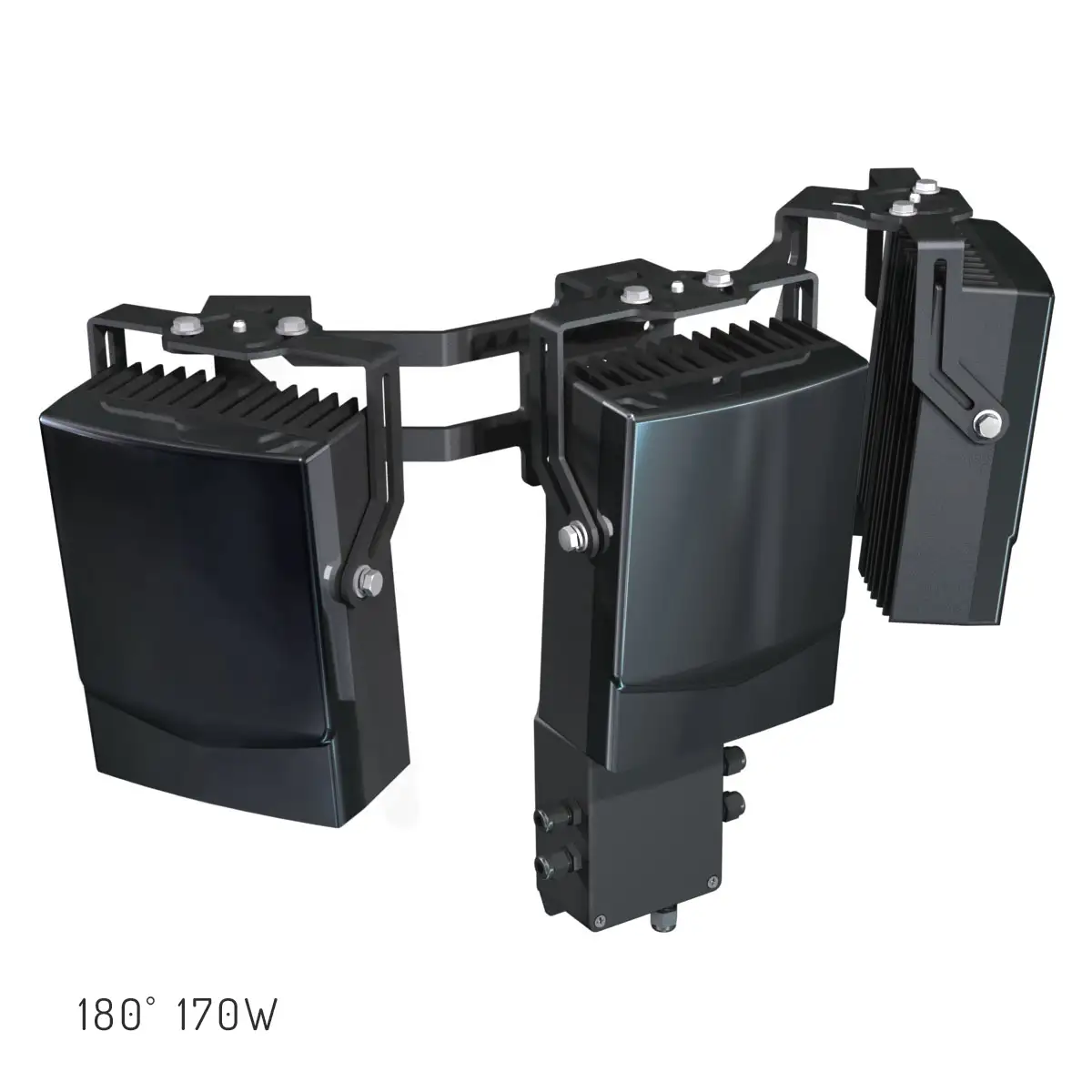

  • AXTON 180˚ IR Illuminator - 170 Watt

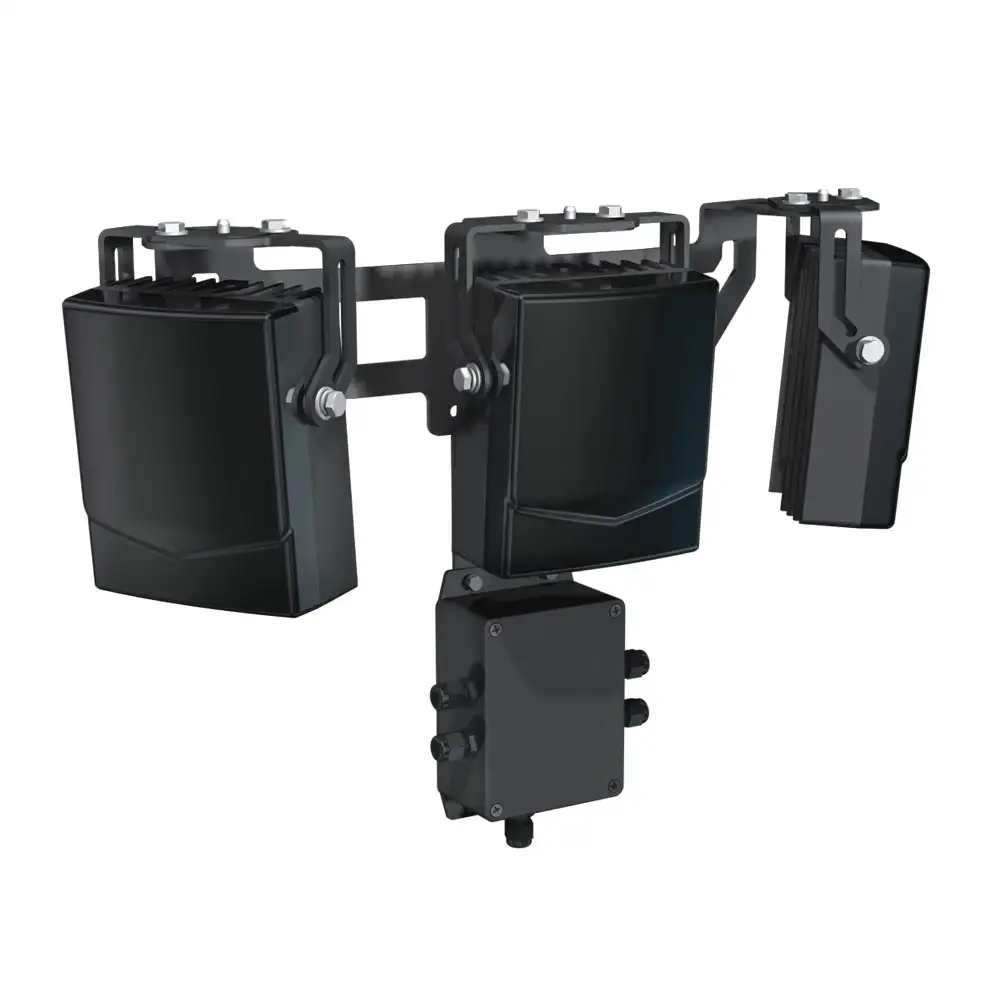

  • AXTON 180˚ IR Illuminator - 75 watt
  • AXTON_floodlight_180_170W_Drawing
  • AXTON_floodlight_180_75W_Drawing

Panoramic 180˚ IR Illuminator

Call for Price

Professional 180˚ IR illuminator for IP cameras and security systems in demanding outdoor environments. The Panoramic 180˚IR illuminator offers wide angle, long range, 850nm infrared light in one easy to deploy solution. To adapt to the specific location, individual light panels can be rotated inward or outward. The I/O ports synchronize the illuminator with cameras, sensors, or other I/O-enabled system components, switching the IR light ON/OFF based on preset conditions. For easy setup use the built-in light sensor for auto ON/OFF based on ambient light.

  • Wavelength – 850nm Infrared
  • Energy Efficient – Advanced LED Technology
  • Range: up to 420ft (170W)
  • Power Consumption/Options: 170W, 75W or 33 Watts
  • I/O Port Control for Camera & Sensor Sync
  • Built in light sensor for auto On/Off
  • Input Voltage Options: 24V AC/DC, Universal AC or PoE++ (75W & 33W only)
  • Outdoor IP67 Rated (weatherproof)
  • Rugged Construction, Impact Rating: IK10 (IEC 62262) Vandal-resistant
  • Lifetime Warranty, Designed and Manufactured in the USA
  • Adjustable Pan/Tilt Mounting System

    Pole, Wall or Corner Mounting Adapter required, depending on location

Purchasing Options

Price shown is for the 75W low-voltage model. Other wattages, PoE and Universal AC models are available. Contact AXTON for pricing or orders over two units.

PN: N/A Categories: , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Description

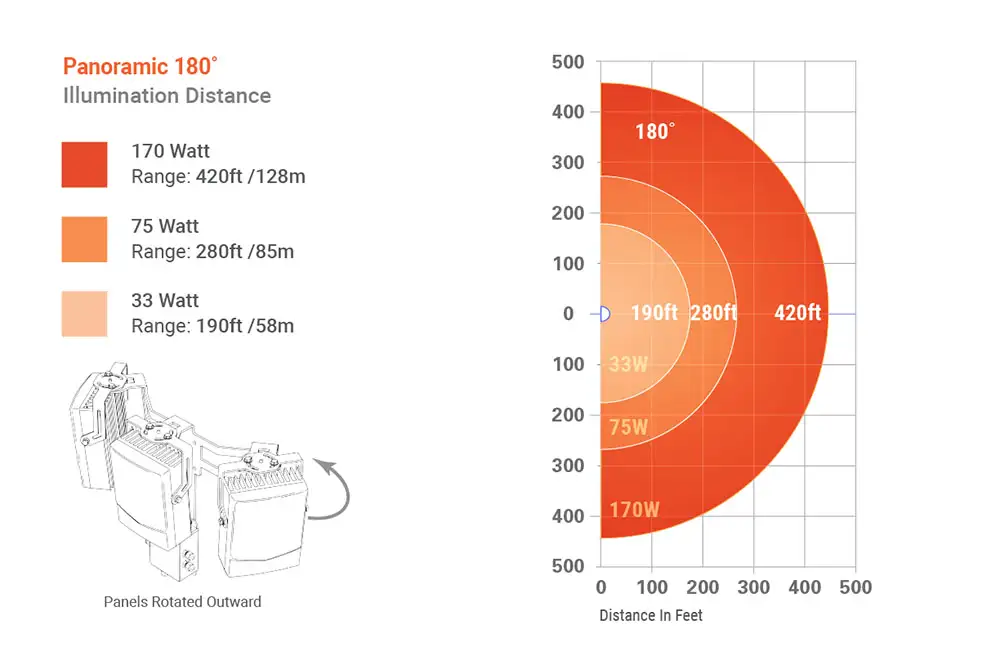

Panoramic 180˚ IR Illuminator Range

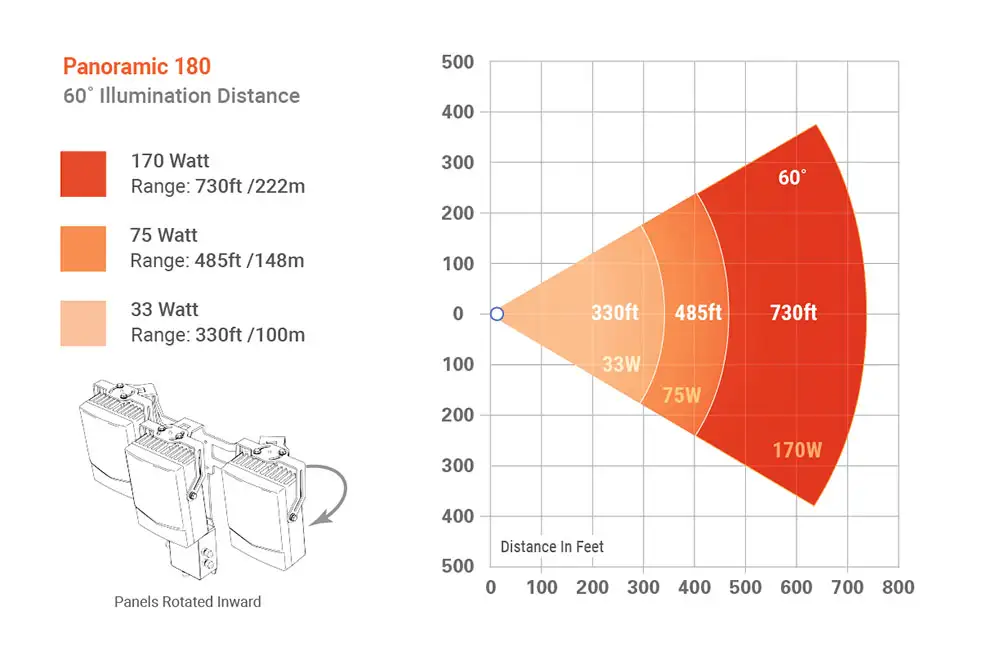

Range Option 60˚

Other lens angles are available with ranges up to 2,075ft, contact us for details.

*Light Panels can be rotated by increments to achieve coverage in-between these ranges.

Questions about this Product?   Model File: 3D .stl file available upon request.

Specifications

Panoramic 180˚ IR
Wavelength 850nm Infrared
Input Voltage Options 24V AC/DC
Universal AC
PoE++ (802.3bt) 33 & 75 Watt only
Features Input/Output Ports
Day/Night Sensor
Power Consumption Options: 33W, 75W or 170 Watts
Impact Rating: IK10 (IEC 62262)
Operating Temperature -58°F to 140°F/ -50°C to 60°C
Dimensions 23.78" x 7.3" x 15.2" (varies by model)

3D model files (.stl) available upon request.

Weight 15 - 28 lbs (varies by model)
Environmental Outdoor IP67 Rated
Mounting Adjustable Pan/Tilt Mounting System

Datasheet

AXTON Panoramic 180 degree IR Illuminator Data-sheet

Setup

Quick Setup Guide

AXTON LED IR & White Light Setup Guide 180,270,360

Quick Setup Guide PoE

Setup_Guide_AXTON-PoE_Lighting

Part Numbers

WATTS DESCRIPTION PART NUMBER
33 33W, Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
24V AC/DC Input, Includes Junction Box, 850nm 		AT-33S-180P.33SP28180
33
(Universal AC)		33W, Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
Universal AC Input, Includes Junction Box and Power Supply, 850nm 		AT-33S-180P.33SP48180
33
(PoE++)		33W, Panoramic Series PoE, 180°, Day/Night Sensor, I/O Ports,
PoE++ (802.3bt) Input, 850nm 		AT-33E-180P.33EP38180
75 75W, Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
24V AC/DC Input, Includes Junction Box, 850nm 		AT-75S-180P.75SP28180
75
(Universal AC)		75W, Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
Universal AC Input, Includes Junction Box and Power Supply, 850nm 		AT-75S-180P.75SP48180
75
(PoE++)		75W, Panoramic Series PoE, 180°, Day/Night Sensor, I/O Ports,
PoE++ (802.3bt) Input, 850nm 		AT-75E-180P.75EP38180
170 170W, Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
24V AC/DC Input, Includes Junction Box, 850nm 		AT-170S-180P.170SP28180
170
(Universal AC)		170W, Panoramic Series, 180°, Day/Night Sensor, I/O Ports,
Universal AC Input, Includes Junction Box & Power Supply, 850nm 		AT-170S-180P.170SP48180
