Description

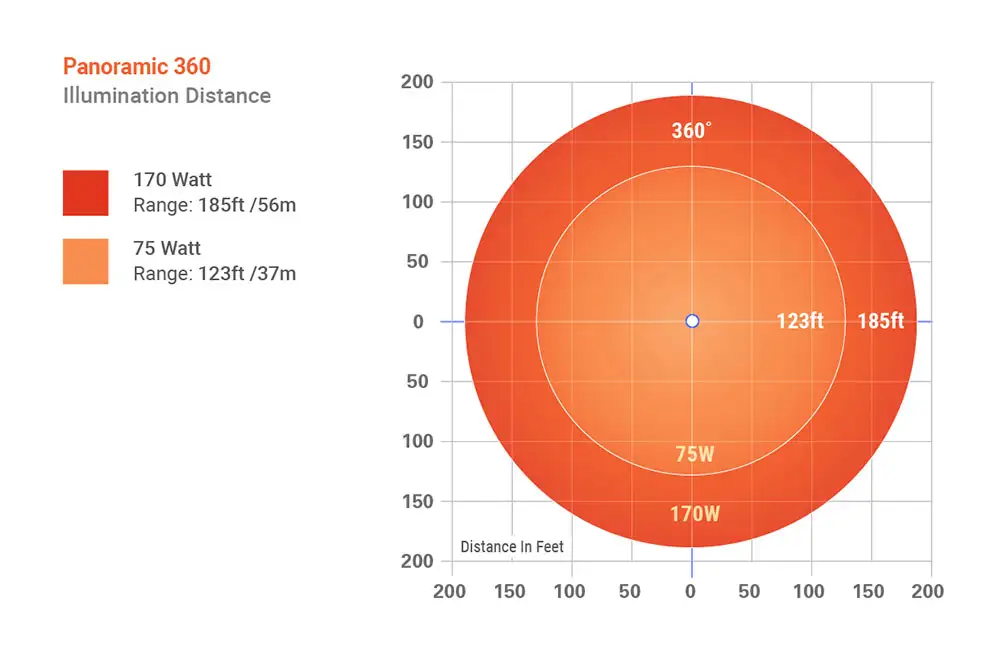

Panoramic 360˚ IR Illumination Range/Options

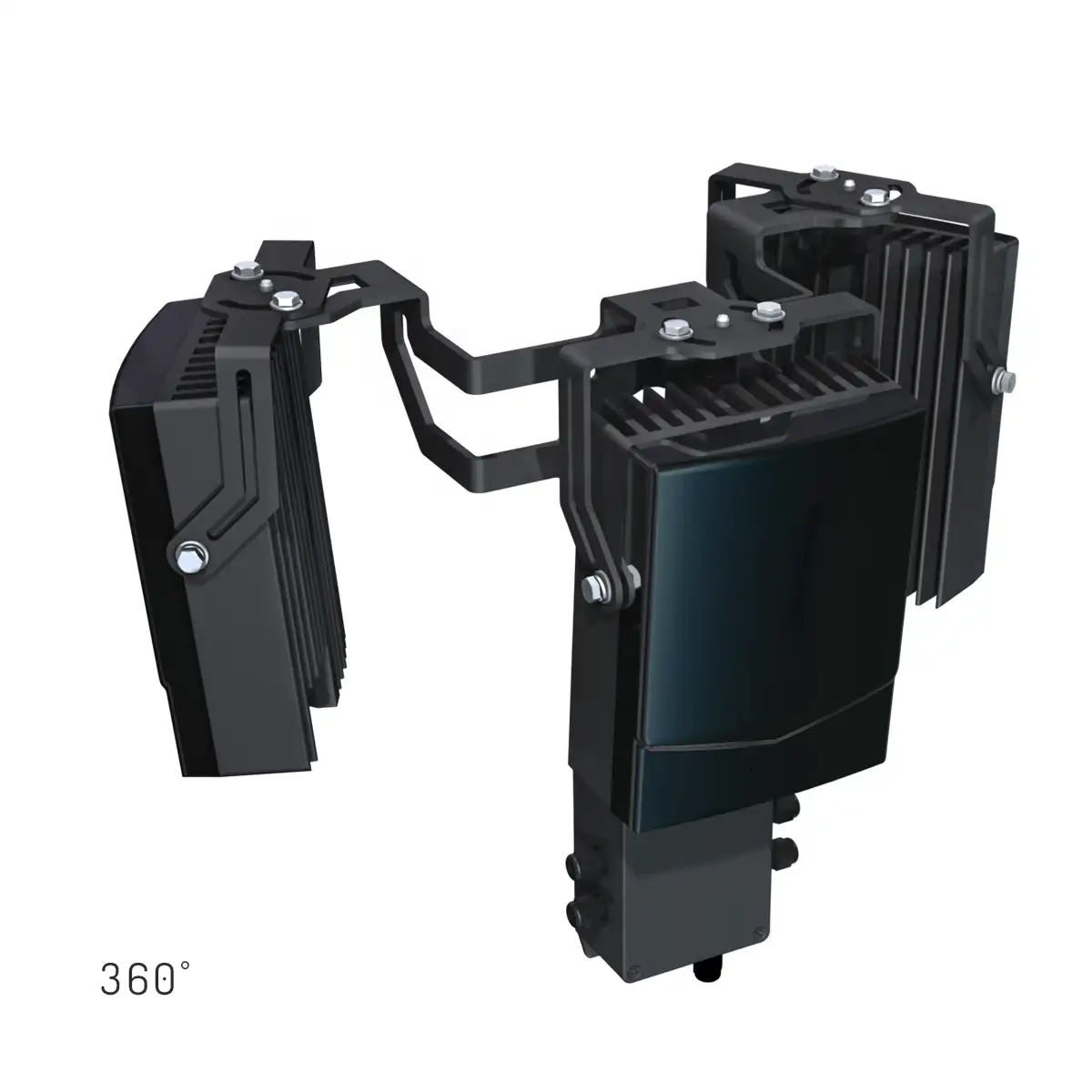

Panoramic 360˚ IR Illuminator 850nm
Professional 360° IR illuminator for IP cameras and security systems in demanding outdoor environments. The Panoramic 360˚IR illuminator offers wide angle, long range, 850nm infrared light in one easy to deploy solution. The I/O ports synchronize the illuminator with cameras, sensors, or other I/O-enabled system components, switching the IR light ON/OFF based on preset conditions. For easy setup use the built-in light sensor for auto ON/OFF based on ambient light.
- Wavelength – 850nm Infrared
- Energy Efficient – Advanced LED Technology
- IR Coverage: full 360˚ HFOV and up to 185ft (170W)
- I/O Port Control for Camera & Sensor Sync
- Built in light sensor for auto On/Off
- Options – 170W or 75 Watts
- Input Voltage Options: 24V AC/DC, Universal AC or PoE++ (75W only)
- Outdoor IP67 Rated (weatherproof)
- Rugged Construction, Vandal-resistant, Impact Rating: IK10 (IEC 62262)
- Lifetime Warranty, Designed and Manufactured in the USA
- Adjustable Pan/Tilt Mounting System
Square or Round Pole Mounting Adapter required.
Questions about this Product? Model File: 3D .stl file available upon request.
Specifications
Panoramic 360˚ | |
| Wavelength | 850nm Infrared |
| Input Voltage Options | 24V AC/DC |
| Universal AC | |
| PoE++ (75 Watt only) | |
| Power Consumption | Options: 75W or 170 Watts |
| Features | Input/Output Ports Day/Night Sensor |
| Impact Rating: | IK10 (IEC 62262) |
| Operating Temperature | -58°F to 140°F / -50°C to 60°C |
| Dimensions | 20.5” x 15.2” / varies by model 3D model files (.stl) available upon request. |
| Weight | 15 - 28 lbs (varies by model) |
| Environmental | Outdoor IP67 Rated |
| Mounting | Adjustable Pan/Tilt Mounting System |
Part Numbers
| WATTS | DESCRIPTION | PART NUMBER |
| 75 | 75W, Panoramic Series, 360°, Day/Night Sensor, I/O Ports, 24V AC/DC Input, Includes Junction Box, 850nm | AT-75S-360P.75SP28360 |
| 75 (Universal AC) | 75W, Panoramic Series, 360°, Day/Night Sensor, I/O Ports, Universal AC Input, Includes Junction Box & Power Supply, 850nm | AT-75S-360P.75SP48360 |
| 75 (PoE++) | 75W, Panoramic Series PoE, 360°, Day/Night Sensor, I/O Ports, PoE++ (802.3bt) Input, 850nm | AT-75E-360P.75EP38360 |
| 170 | 170W, Panoramic Series, 360°, Day/Night Sensor, I/O Ports, I/O Ports, 24V AC/DC Input, Includes Junction Box, 850nm | AT-170S-360P.170SP28360 |
| 170 (Universal AC) | 170W, Panoramic Series, 360°, Day/Night Sensor, I/O Ports, Universal AC Input, Includes Junction Box & Power Supply, 850nm | AT-170S-360P.170SP48360 |
