Description
Helios 270° Solar LED Floodlight
Range Option* (panels rotated inward)
*Light Panels can be rotated by increments to achieve coverage in-between these ranges.

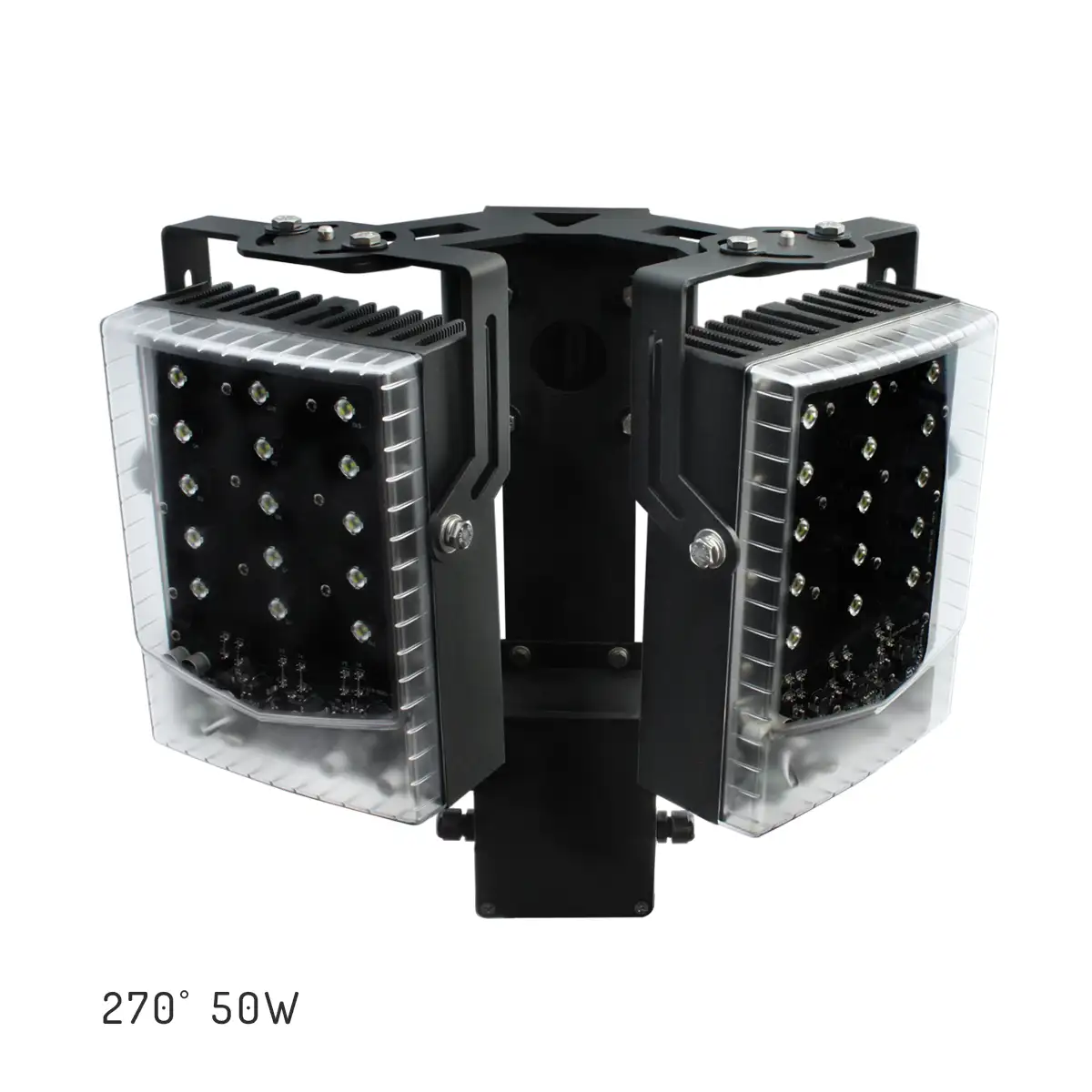

Helios 270˚ Solar LED Floodlight
The HELIOS 270° wide-angle LED solar floodlight is designed for professional off-grid security systems. I/O ports synchronize it with cameras, motion sensors, or other I/O-enabled components; alternatively, the built-in light sensor provides automatic day/night operation.
- High Efficiency LED Flood-Light
More Range per watt than comparable U.S. security Lights - White Light: Temp: 5000K | Lumens: 115 Watt: 15,750Lm, 50 Watt: 10,500Lm
- Illumination Range: up to 230ft. (see tab below for angle/range options)
- I/O Port Control for Camera & Sensor Sync
- Built-in light sensor for auto On/Off
- Outdoor IP67 Rated (weatherproof)
- Rugged Construction: powder-coated aluminum extrusion body, polycarbonate face/lens, Heavy Gauge Steel Mount
- Impact Rating: IK10 (IEC 62262) Vandal-resistant
- Input Voltage – 9 to 28 VDC
- Power Consumption/Options – 50 or 115 Watts
- Lifetime Warranty, Designed and Manufactured in the USA
- Adjustable Pan/Tilt Mounting System
Pole, Wall or Corner Mounting Adapter required, depending on location
AT-22YW-270P.22YWP11270,AT-50YW-270P.50YWP11270,AT-115YW-270P.115YWP11270,AT-170YW-270P.170YWP11270
3D (.stl) model files available upon request, to learn more visit our model request page.
Specifications
Helios 270 White Floodlight | |
| Wavelength | White Light (Temp: 5000K) |
| Lumens | 115W: 19,000Lm |
| 50W: 8,400Lm | |
| Input Voltage | 9-28 VDC Input |
| Features | Input/Output Ports Day/Night Sensor |
| Power Consumption Options: | 50 or 115 Watts |
| Operating Temperature | -58°F. to +140°F / -50°C to +60°C |
| Dimensions | 23.78” x 7.3” x 15.2” varies by model |
| Weight | 15 - 23 lbs (varies by model) |
| Environmental | Outdoor IP67 Rated |
| Mounting | Adjustable Pan/Tilt Mounting System |
Part Numbers
| WATTS | DESCRIPTION | PART NUMBER |
| 50 | 50W, Helios Series, 270°, Day/Night Sensor, I/O Ports, 9-28 VDC Input, Includes Junction Box, White Light | AT-50YW-270P.50YWP11270 |
| 115 | 115W, Helios Series, 270°, Day/Night Sensor, I/O Ports, 9-28 VDC Input, Includes Junction Box, White Light | AT-115YW-270P.115YWP11270 |
