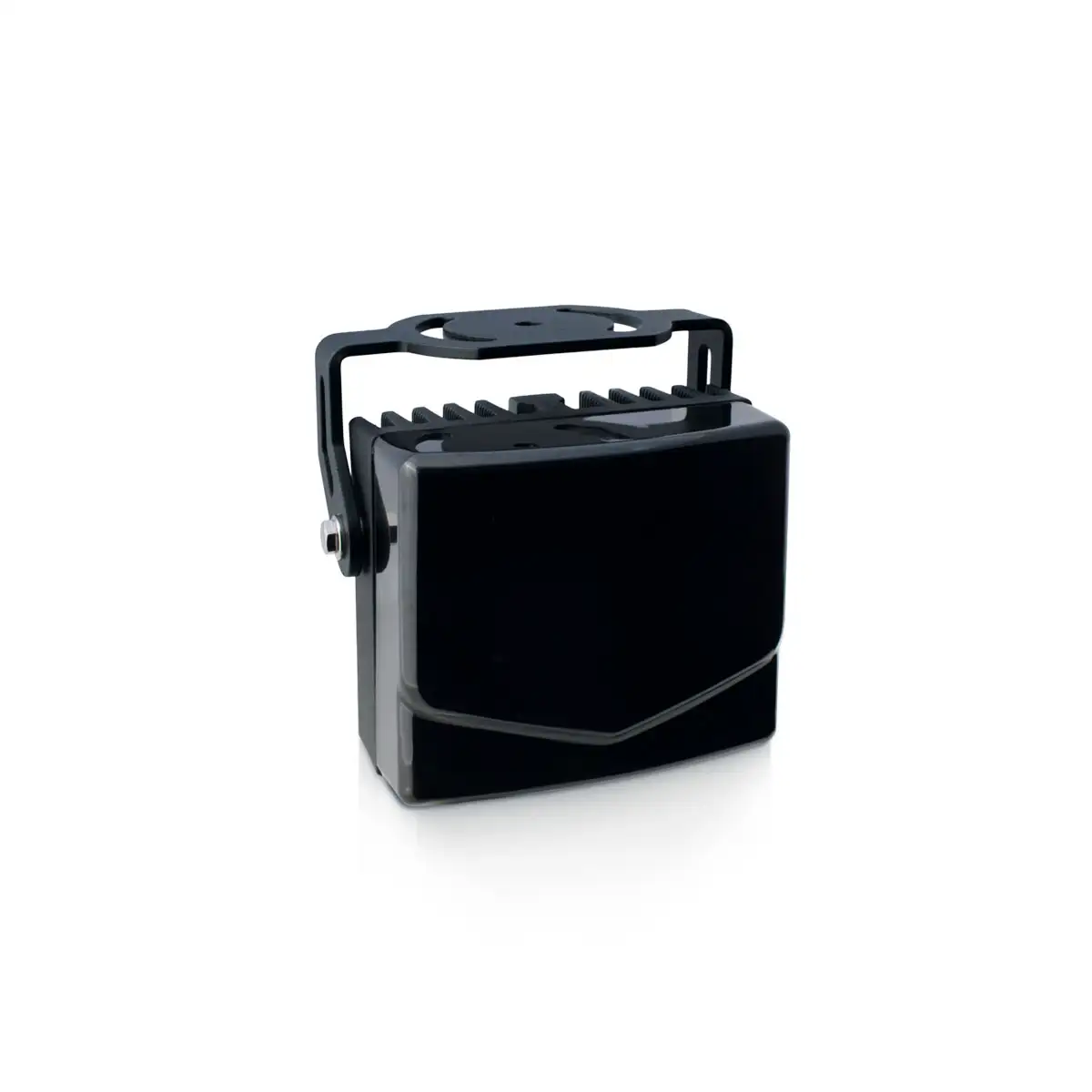

Helios 11Y, Solar-Battery 850nm IR Illuminator
HELIOS low-voltage (9-28V) IR illuminators are specifically designed for use with battery-powered systems. They are ideally suited for solar, mobile or automotive applications where standard 12V or 24V batteries are used. Choose from multiple light coverage, angle options. Rugged, outdoor IP67 rated, vandal resistant construction. Equipped with I/O ports for seamless camera sync, and an automatic DAY/NIGHT switch for easy integration.
- Wavelength – 850nm Infrared
- Energy Efficient – Advanced LED Technology
- Outdoor IP67 Rated
- Illumination Range: up to 540 ft. (10˚)
- Six Angle/Coverage Options:
150˚, 90˚, 60˚x30˚, 30˚, 20˚x10˚ or 10˚ - Power Consumption – 11 Watts
- Input Voltage – 9 to 28 VDC
- I/O Ports Sync with Sensors, Camera, I/O Port Devices
- Automatic Day/Night Switch
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Pan/Tilt U Bracket Included
Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.
AT-11Y-S.11YS1810, AT-11Y-S.11YS182010, AT-11Y-S.11YS1830, AT-11Y-S.11YS186030, AT-11Y-S.11YS1890, AT-11Y-S.11YS18150
Helios AT-11Y-S IR Illuminator – Range Options
Specifications
Helios 25Y Specifications | |
Wavelength | 850nm Infrared |
Input Voltage | 9 to 28 VDC |
Power Consumption | 11 Watts |
Features | Input/Output Ports Day/Night Sensor |
Operating Temperature | -58°to140°F / -50° to 60°C |
Dimensions | 4.25” x 2” x 4.25” / 108 x 51 x 108mm |
Weight | 1.25 lbs/ .56kg |
Environmental | Outdoor IP67 Rated |
Mounting | Pan/Tilt U bracket |
Part Numbers
Helios AT-11Y-S Part Numbers | ||
ANGLE | DESCRIPTION | PART NUMBER |
10˚ | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, 850nm IR, 10° | AT-11Y-S.11YS1810 |
20˚ x 10˚ | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, 850nm IR, 20°x10° | AT-11Y-S.11YS182010 |
30° | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, 850nm IR, 30° | AT-11Y-S.11YS1830 |
60° x 30˚ | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, 850nm IR, 60°x30° | AT-11Y-S.11YS186030 |
90˚ | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, 850nm IR, 90° | AT-11Y-S.11YS1890 |
150° | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, 850nm IR, 150° | AT-11Y-S.11YS18150 |
