Name: Hybrid 56HE PoE IR Illuminator &amp; White Floodlight
SKU: AT-56HE-S
Price: 1712.00 USD
Availability: InStock

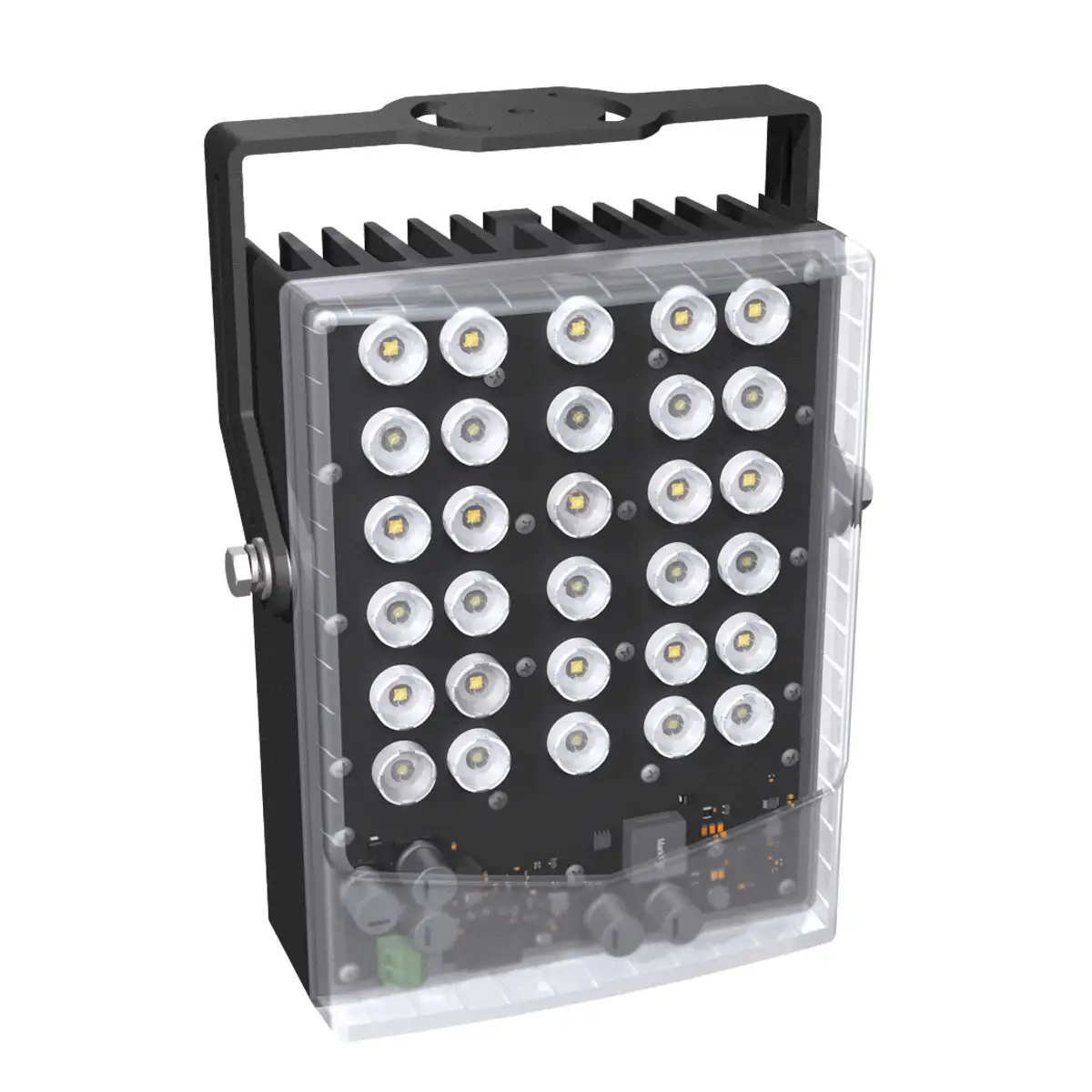

Hybrid 56HE PoE IR Illuminator & White Floodlight

$1,712.00

The Hybrid AT-56HE-S, is a long range, PoE++ Powered LED IR Illuminator and an event activated White Floodlight. The Hybrid 56HE operates as an Infrared Illuminator by default, until a motion sensor or other I/O port connected device activates the White floodlight. The powerful 11,875 Lumen white Floodlight captures important color information on the security camera, and alerts the intruder that they have been detected. Once the event is over, the light switches back to IR mode.

Energy Efficient – Advanced LED Technology
Wavelengths – 850nm Infrared & White Light
White Light – Lumens: 11,875 Lm /Temp. 5000K
Illumination Range: up to 1,200 ft. (six angle options)
Input/Output (I/O) Port Sync with Camera, Sensors, Devices
Outdoor IP67 Rated, waterproof
Angle/Coverage Options: 150˚, 90˚ (60˚x 30˚ elliptical*) 30˚, 20˚x10˚ or 10˚
Power Consumption – 56 Watts
Input Voltage – PoE++
Rugged Construction: powder-coated aluminum extrusion body, polycarbonate face/lens
Designed and Manufactured in the USA
Lifetime Warranty with Advanced Replacement
Pan/Tilt U Bracket Included
Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.

How to Buy

Description

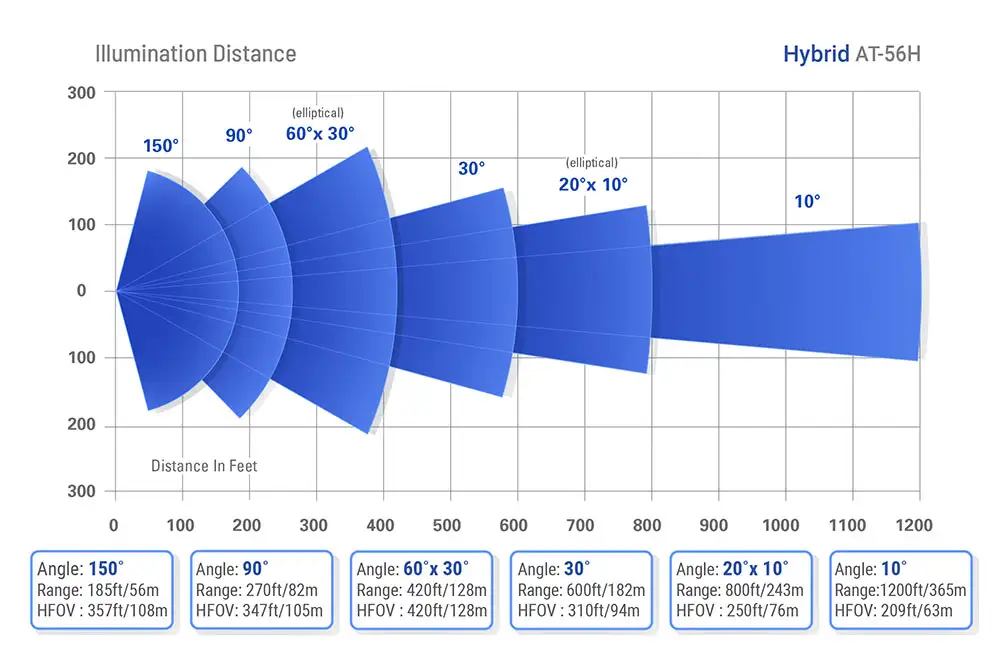

Hybrid 56HE Range/Angle Options

See the chart below to select the light angle coverage option that matches the range needed for your application.

*Article: About Elliptical Light Beam Angles

NOTE: Above Ranges are for IR light the White Light Range will be increased by 20%.

Specifications


Hybrid AT-56HE-S
Wavelength IR	850nm IR
White Light	Lumens 11,875 Lm/ Temp. 5000K
Input Voltage	PoE++
Power Consumption	56 Watts
Features	Input/Output Ports
Operating Temperature	-58°to140°F / -50° to 60°C
Dimensions	6.25” x 3.5” x 9.25” / 159 x 89 x 235mm
Weight	5.5 lbs /2.5kg
Environmental	Outdoor IP67 Rated
Mounting	Pan/Tilt U bracket

Datasheet

Datasheet PDF

Setup

Setup Guide PDF

Part Numbers


ANGLE	DESCRIPTION	PART NUMBER
150˚	56W, Hybrid Series, I/O Ports, PoE++ Input, White/850nm, 150°	AT-56HE-S.56HES318150
90˚	56W, Hybrid Series, I/O Ports, PoE++ Input, White/850nm, 90°	AT-56HE-S.56HES31890
60° x 30˚	56W, Hybrid Series, I/O Ports, 24-36VDC or 24VAC Input, White/850nm, 60° x 30˚	AT-56HE-S.56HES3186030
30°	56W, Hybrid Series, I/O Ports, PoE++ Input, White/850nm, 30°	AT-56HE-S.56HES31830
20° x 10˚	56W, Hybrid Series, I/O Ports, PoE++ Input, White/850nm, 20° x 10˚	AT-56HE-S.56HES3182010
10˚	56W, Hybrid Series, I/O Ports, PoE++ Input, White/850nm, 10°	AT-56HE-S.56HES31810
