Description
Panoramic 270˚ IR Illuminator Range
Range Option
Light Panels can be rotated by increments to achieve coverage in-between these ranges.
Other lens angles are available with ranges up to 2,075ft, contact us for details.
Panoramic 270˚ IR Illuminator 850nm
The Panoramic 270 IR Illuminator offers Long Range 270˚ infrared light in one easy to deploy solution. To adapt to the specific location, individual light panels can be rotated inward or outward for added flexibility. The Panoramic 270 is also equipped with I/O ports for seamless sync with a camera, or any other system device with I/O ports. For easy “plug-and-play” integration, it features an automatic DAY/NIGHT switch.
- Wavelength – 850nm Infrared
- Energy Efficient – Advanced LED Technology
- Outdoor IP67 Rated
- IR Range: 270 Degrees out to 270ft or 90˚ HFOV to 465ft (170W)
Other lens angles are available with ranges up to 2,075ft, contact us for details.
- Power Consumption/Options: 170W, 115W or 50 Watts
- Input Voltage Options: 24V AC/DC, Universal AC or PoE++ (50 Watt only)
- I/O Port Sync with Sensors, Camera, I/O Port Devices
- Automatic Day/Night Switch
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Adjustable Pan/Tilt Mounting System
Pole, Wall or Corner Mounting Adapter required, depending on location
AT-22S-270P.22SP28270, AT-22S-270P.22SP48270, AT-22E-270P.22EP38270, AT-50S-270P.50SP28270, AT-50S-270P.50SP48270,AT-50E-270P.50EP38270,AT-115S-270P.115SP28270,AT-115S-270P.115SP48270,AT-170S-270P.170SP28270,AT-170S-270P.170SP48270,panoramic 180˚
Questions about this Product? Model File: 3D .stl file available upon request.
Specifications
Panoramic 270˚ | |
| Wavelength | 850nm Infrared |
| Input Voltage Options: | 24V AC/DC |
| Universal AC | |
| PoE++ (50 Watt Only) | |
| Power Consumption | Options: 50W, 115W or 170 Watts |
| Features | Input/Output Ports Day/Night Sensor |
| Operating Temperature | -58°F to 140°F/ -50°C to 60°C |

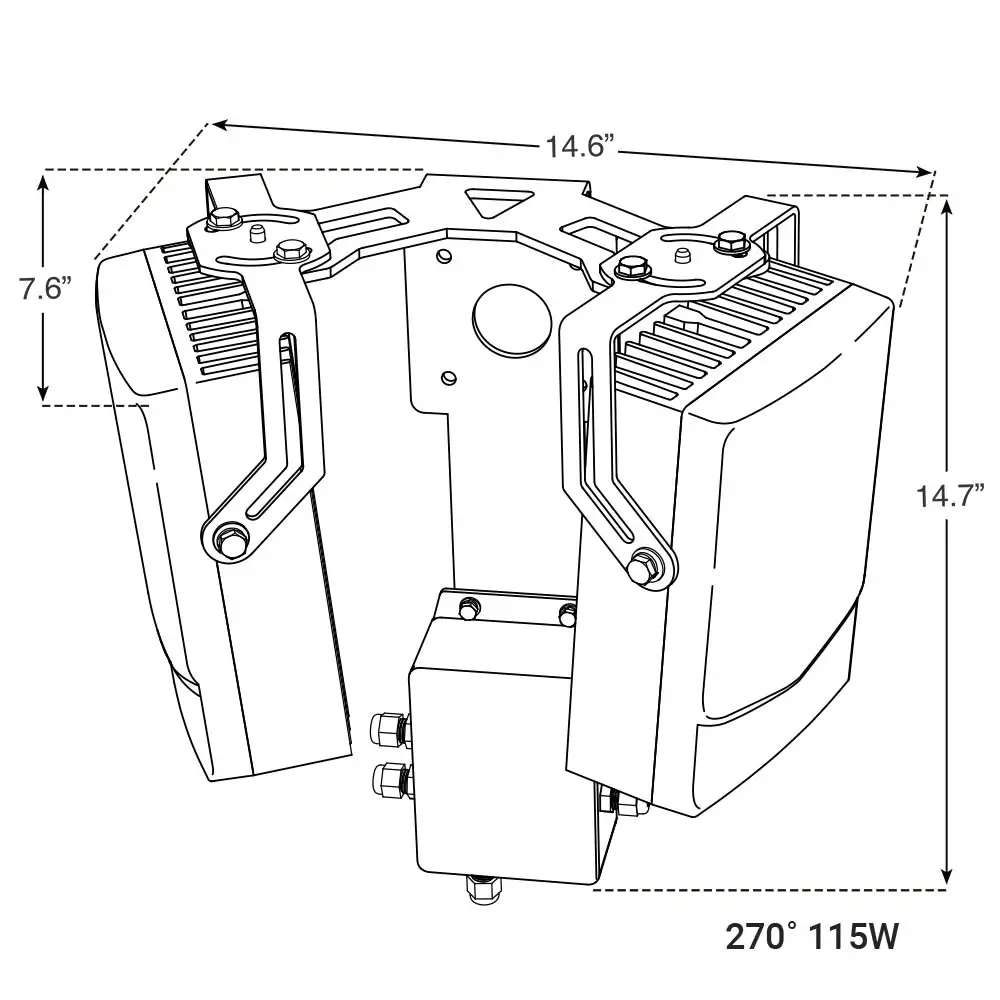

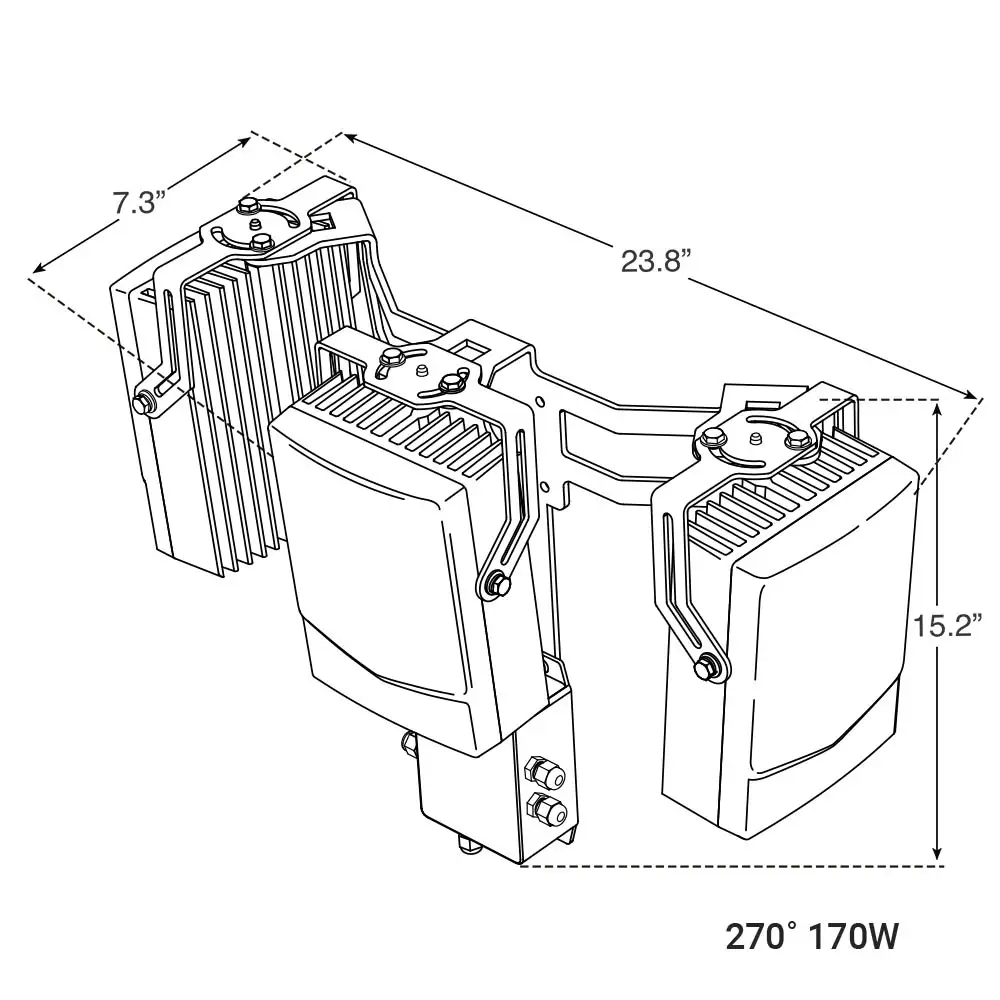

| Dimensions | 23.78” x 7.3” x 15.2” / varies by model 3D model files (.stl) available upon request. |
| Weight | 15 - 28 lbs / varies by model |
| Environmental | Outdoor IP67 Rated |
| Mounting | Adjustable Pan/Tilt Mounting System |
| Operating Temperature | -58°F to 140°F/ -50°C to 60°C |
Part Numbers
| WATTS | DESCRIPTION | PART NUMBER |
| 50 | 64W, Panoramic Series, 270°, Day/Night Sensor, I/O Ports, 24V AC/DC Input, Includes Junction Box, 850nm | AT-50S-270P.50SP28270 |
| 50 (Universal AC) | 64W, Panoramic Series, 270°, Day/Night Sensor, I/O Ports, Universal AC Input, Includes Junction Box & Power Supply, 850nm | AT-50S-270P.50SP48270 |
| 50 (PoE++) | 64W, Panoramic Series PoE, 270°, Day/Night Sensor, I/O Ports, PoE++ (802.3bt) Input, 850nm | AT-50E-270P.50EP38270 |
| 115 | 115W, Panoramic Series, 270°, Day/Night Sensor, I/O Ports, 24V AC/DC Input, Includes Junction Box, 850nm | AT-115S-270P.115SP28270 |
| 115 (Universal AC) | 115W, Panoramic Series, 270°, Day/Night Sensor, I/O Ports, Universal AC Input, Includes Junction Box & Power Supply, 850nm | AT-115S-270P.115SP48270 |
| 170 | 170W, Panoramic Series, 270°, Day/Night Sensor, I/O Ports, 24V AC/DC Input, Includes Junction Box, 850nm | AT-170S-270P.170SP28270 |
| 170 (Universal AC) | 170W, Panoramic Series, 270°, Day/Night Sensor, I/O Ports, Universal AC Input, Includes Junction Box & Power Supply, 850nm | AT-170S-270P.170SP48270 |
