Description
Helios 180° 180˚ Floodlight Range
Range Option* 60˚ (panels rotated inward)
*Light Panels can be rotated by increments to achieve coverage in-between these ranges.

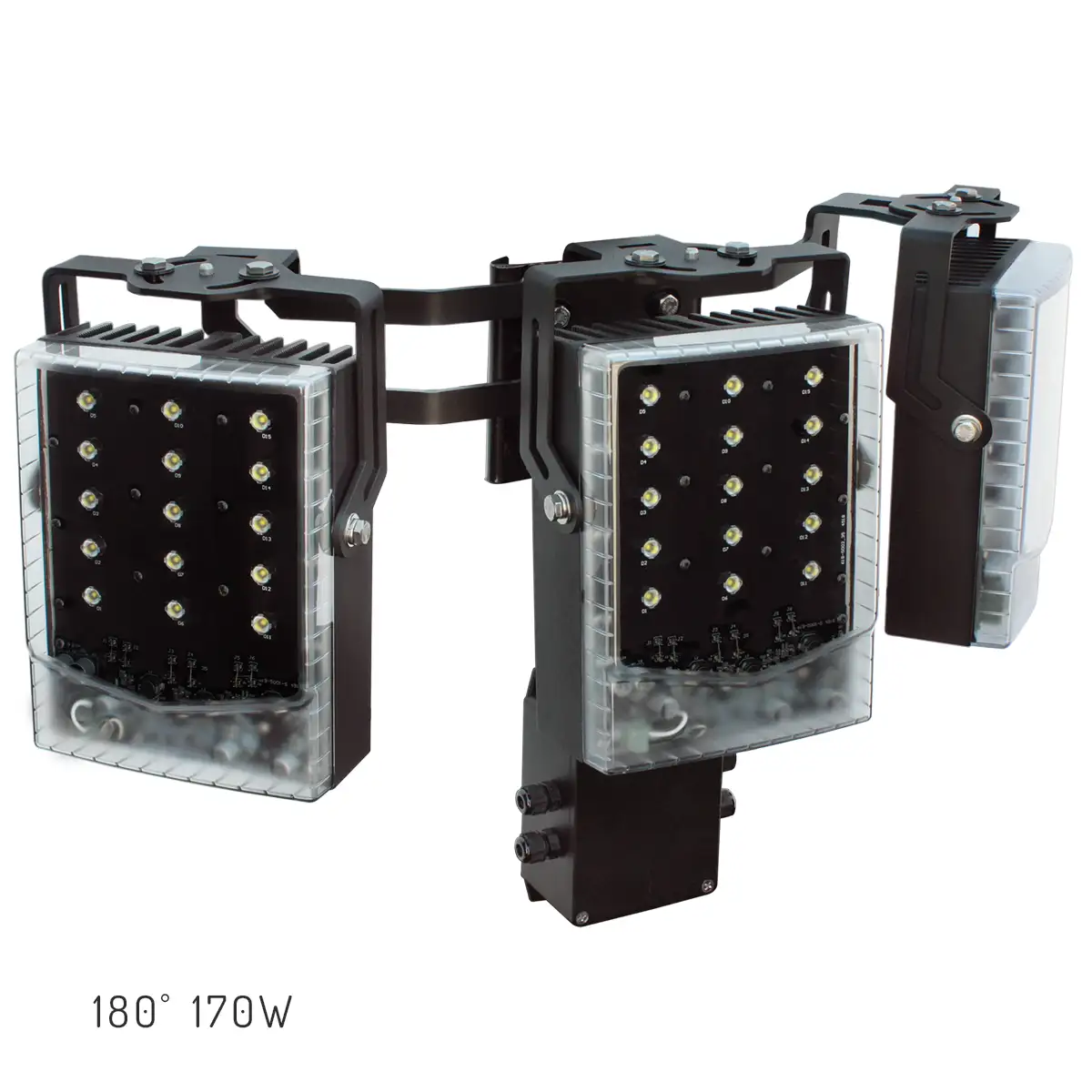

HELIOS White Lights are designed for use with solar, battery, off-grid systems. The Helios 180 Floodlight provides full 180° light coverage. The light panels can be rotated on the Pan/Tilt Mounting System for either, maximum 180˚ HFOV, or for max distance with a 60˚ HFOV. Features include: I/O port sync with sensors, camera, I/O port devices, automatic DAY/NIGHT switch for easy integration.
Pole, Wall or Corner Mounting Adapter required, depending on location
AT-33YW-180P.33YWP11180,AT-75YW-180P.75YWP11180,AT-170YW-180P.170YWP11180
3D (.stl) model files available upon request, to learn more visit our model request page.
*Light Panels can be rotated by increments to achieve coverage in-between these ranges.
Helios 180 White Floodlight | |
Wavelength | White Light |
Lumens/Temp. | 12,600Lm/5000K |
Input Voltage | 9-28 VDC Input |
Power Consumption | 75 Watts |
Features | Input/Output Ports Day/Night Sensor |
Operating Temperature | -58°F to 140°F / -50°C to 60°C |

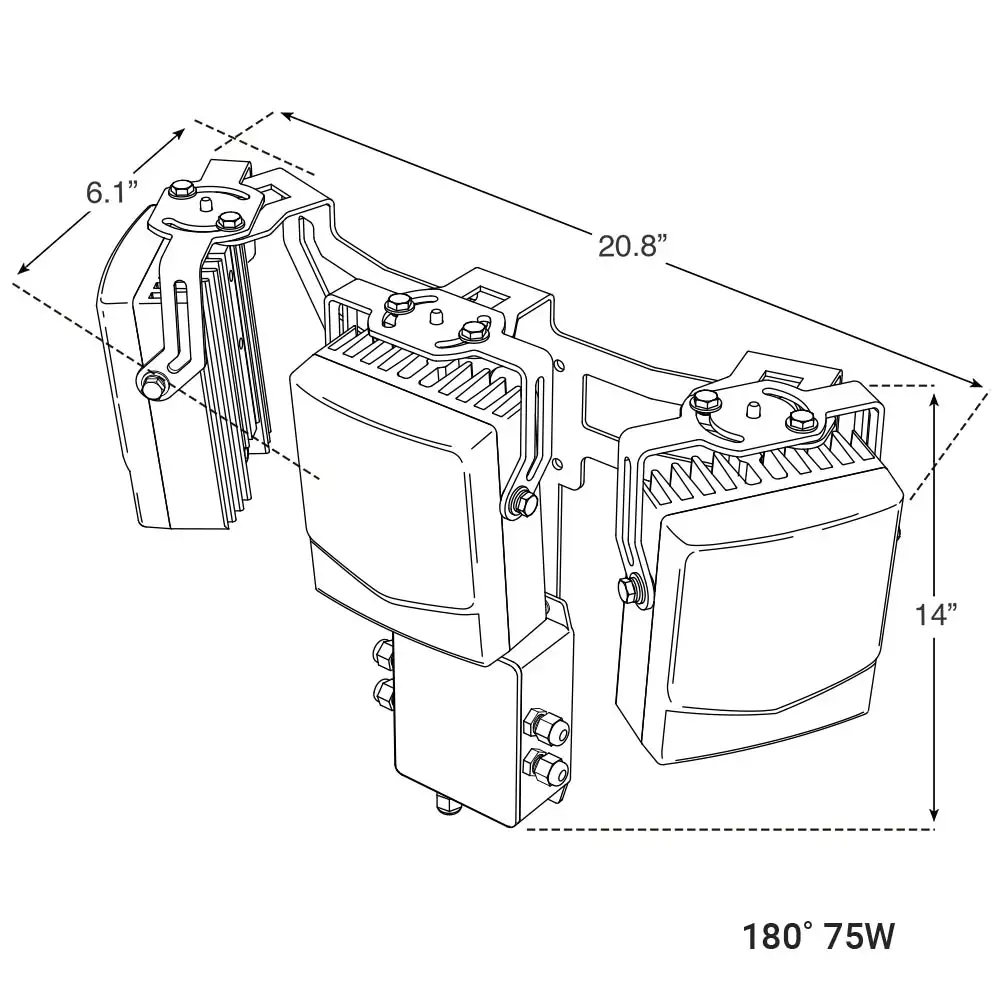

Dimensions | 20.8" x 6" x 14" |
Weight | 23 lbs |
Environmental | Outdoor IP67 Rated |
Mounting | Adjustable Pan/Tilt Mounting System |
WATTS | DESCRIPTION | PART NUMBER |
75 | 75W, Helios Series, 180°, Day/Night Sensor, I/O Ports, 9-28 VDC Input, Includes Junction Box, White Light | AT-75YW-180P.75YWP11180 |
