Description
Helios 11YW White light Range & Beam Angle Options

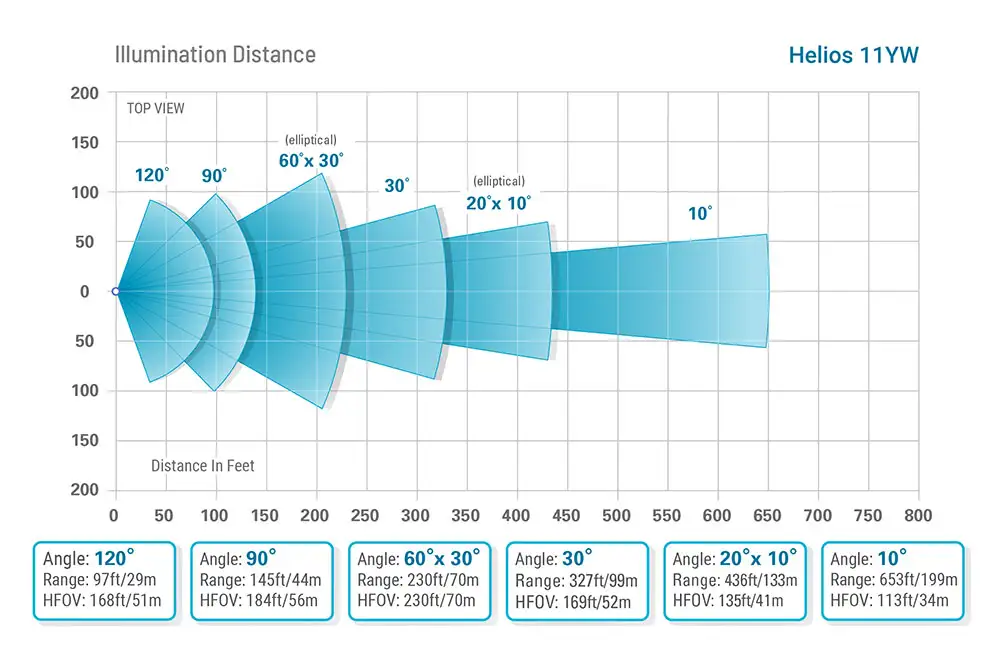

See the chart below to select the light beam angle option that matches your security camera’s F.O.V. or range needed for your application.
*Article: About Elliptical Light Beam Angles
$611.00
HELIOS lights are designed for use with Off-Grid, battery and solar powered security or mobile applications. The Input/Output ports can be used to connect to motion sensors, camera or other I/O port devices to turn light On/Off based on preset conditions. For easy integration, Helios Lights also have a built-in light sensor for Auto ON/OFF operation. Helios Lights are rugged, vandal resistant and are Outdoor IP67 Rated (weatherproof). Choose from multiple beam angle options, including elliptical* beam angles (see range chart below).
Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts
Learn more: Solar Power Setup Basics
AT-11YW-S.11YWS1110, AT-11YW-S.11YWS112010, AT-11YW-S.11YWS1130, AT-11YW-S.11YWS116030, AT-11YW-S.11YWS11120, AT-11YW-S.11YWS1190, at-11YW-S, at11yw, 11yw
See the chart below to select the light beam angle option that matches your security camera’s F.O.V. or range needed for your application.
*Article: About Elliptical Light Beam Angles
Helios 11YW Specifications | |
White Light | Lumens 2,250 Lm/ Temp. 5000K |
Input Voltage | 9 to 28 VDC |
Power Consumption | 11 Watts |
Features | • Input/Output Ports • Day/Night Sensor |
Operating Temperature | -58°to140°F / -50° to 60°C |
Dimensions | 4.25” x 2” x 4.25” / 108 x 51 x 108mm |
Weight | 1.25 lbs/ .56kg |
Environmental | Outdoor IP67 Rated |
Mounting | Pan/Tilt U bracket |
Helios 11YW Part Numbers | ||
ANGLE | DESCRIPTION | PART NUMBER |
10˚ | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, White Light, 10° | AT-11YW-S.11YWS1110 |
20˚ x 10˚ | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, White Light, 20°x10° | AT-11YW-S.11YWS112010 |
30° | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, White Light, 30° | AT-11YW-S.11YWS1130 |
60° x 30˚ | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, White Light, 60°x30° | AT-11YW-S.11YWS116030 |
90° | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, White Light, 90° | AT-11YW-S.11YWS1190 |
120° | 11W, Helios Series, Day/Night Sensor, I/O Ports, 9-28 VDC Input, White Light, 120° | AT-11YW-S.11YWS11120 |
