HELIOS 25YW Floodlight

Battery, Solar OFF-GRID White LED Light

AXTON LED Light 25W - White LED Light
  • AXTON LED Light 25W - White LED Light
  • LED Lighting-AXTON- 25w - Drawing

Helios 25YW, Solar, Battery White Light

$0.00

HELIOS Lights are specifically designed for use with solar/battery powered systems. They are ideally suited for solar, off-grid or for mobile applications where standard 12-24V batteries are used. Helios Lights are rugged and vandal resistant and are outdoor IP67 rated. Equipped with I/O ports for seamless camera sync, and an automatic DAY/NIGHT switch for easy integration. Choose from multiple light coverage angle options.

  • Energy Efficient – Advanced LED Technology
  • White Light – Lumens: 4,200/ Temp: 5000K
  • Outdoor IP67 Rated
  • Illumination Range: up to 880 ft. (10°)
  • Angle/Coverage Options: 120°, 90°, 60˚x30°, 30°, 20°x10° or 10°
  • Power Consumption – 25 Watts
  • Input Voltage – 9 to 28 VDC
  • I/O Port Sync with Sensors, Camera, I/O Port Devices
  • Automatic Day/Night Switch
  • Rugged Construction – Vandal Resistant
  • Designed and Manufactured in the USA
  • Lifetime Warranty with Advanced Replacement
  • Pan/Tilt U Bracket Included
    Mounting adapter available separately see: Wall, Corner or Pole Panning Mounts.

AT-25YW-S.25YWS1110, AT-25YW-S.25YWS112010, AT-25YW-S.25YWS1130, AT-25YW-S.25YWS116030, AT-25YW-S.25YWS11120

How to Buy
Categories: , , , , , , , , Tags: , , , , , , , , , , , , , ,

Description

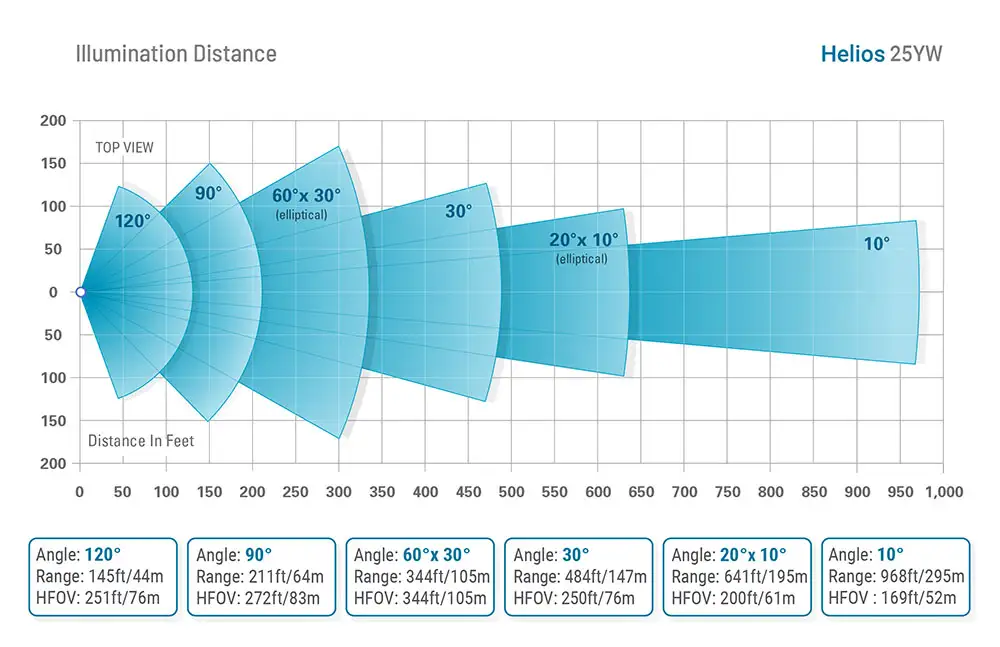

Helios 25YW White Floodlight – Range Options
See the chart below to select the light angle coverage option that matches the range needed for your application.

Battery, Solar Light - HELIOS AT-25Y Range

Specifications

Helios 25YW Specifications
White Light Lumens 4,200 Lm/ Temp. 5000K
Input Voltage 9-28 VDC
Power Consumption 25 Watts
Features Input/Output Ports
Day/Night Sensor
Operating Temperature -58°to140°F / -50° to 60°C
Dimensions 5.25" x 3" x 7.25"/ 133 x 76 x 184mm
Weight 3 lbs /1.3kg
Environmental Outdoor IP67 Rated
Mounting Pan/Tilt U bracket
WordPress Data Table

Datasheet

solar-battery Powered Helios 25YW Floodlight Datasheet

Setup

AXTON Off-Grid LED Lighting setup guide

Part Numbers

Helios 25YW Part Numbers
ANGLE
DESCRIPTION
PART NUMBER
10˚ 25W, Helios Series, Day/Night Sensor, I/O Ports,
9-28 VDC Input, White Light, 10° 		AT-25YW-S.25YWS1110
20˚ x 10˚ 25W, Helios Series, Day/Night Sensor, I/O Ports,
9-28 VDC Input, White Light, 20°x10° 		AT-25YW-S.25YWS112010
30° 25W, Helios Series, Day/Night Sensor, I/O Ports,
9-28 VDC Input, White Light, 30° 		AT-25YW-S.25YWS1130
60° x 30˚ 25W, Helios Series, Day/Night Sensor, I/O Ports,
9-28 VDC Input, White Light, 60°x30° 		AT-25YW-S.25YWS116030
90° 25W, Helios Series, Day/Night Sensor, I/O Ports,
9-28 VDC Input, White Light, 90° 		AT-25YW-S.25YWS1190
120° 25W, Helios Series, Day/Night Sensor, I/O Ports,
9-28 VDC Input, White Light, 120° 		AT-25YW-S.25YWS11120
WordPress Data Table
